Showing 109–120 of 135 results
-
ELECTUDE Courseware for CAN Bus Multiplex Trainer
The perfect eLearning complement to ConsuLab’s CAN bus Multiplex Training System, ELECTUDE’s courseware consists of 15 student-led practical assignments and over 17 hours of instruction.
Teach the working principles of CAN-bus and network communication in an engaging eLearning environment complemented with physical hands-on training system from ConsuLab. Teaching concepts and skills around CAN bus technology has never been more fun, exciting, and accessible with Toolkit’s ELECTUDE + ConsuLab offering.
This practical set-up consists of four control units, switches, sensors and a lighting system, representing a fully operational CAN- bus network that communicate via the J-1939 protocol. Both analog and digital signals can be measured with a multimeter or oscilloscope. In addition, sensor values can be made visible through an information display. The Trainer is also equipped with 12x faultbox. This set-up is ideal for teaching the principles of CAN-bus networks, CAN-bus communication, CAN-bus diagnostics and CAN-bus lighting systems.
Check Out the FREE Demo Under “Software Package”
-
ELECTUDE Courseware for Ignition System Trainer
The perfect eLearning complement to ConsuLab’s Coil-on-Plug Ignition System Trainer, ELECTUDE’s courseware consists of 1 student-led practical assignments and over 9 hours of instruction.
Using the tabletop EM-200-14 Coil-on-Plug Ignition System Training Aid from ConsuLab and ELECTUDE eLearning, students can clearly visualize the ignition system and complete hands-on activities designed to reinforce lesson modules. Four operational faults can be inserted with terminal block receptacles as diagnostic test points. The training aid also includes:
- Engine Control Module (ECM)
- Crankshaft Position Sensor
- Camshaft Position Sensor
- Electric motor-driven crankshaft and/or crankshaft sprockets
- OBD II data link connectors
- Wiring diagrams in both the courseware and the training aid
Check Out the FREE Demo Under “Software Package”
-
ELECTUDE Courseware for EVAP System Trainer
The perfect eLearning complement to ConsuLab’s EVAP (Evaporative Emissions) Trainer, ELECTUDE’s courseware consists of 9 student-led practical assignments and over 9.5 hours of instruction.
The ELECTUDE EM-200-22EVAP system courseware consists of a practical set-up and the associated E-learning. This practical set-up allows the participant to supplement previously acquired knowledge of the sensors with practical skills.
Teach the basics of the EVAP with this combination of ELECTUDE modules and ConsuLab’s desktop EVAP training aid. E-learning modules teach the purpose of emissions systems, explain leak tests and demonstrate how to identify and test valves and sensors. The training aid reinforces these concepts with functional fuel tanks, valves, sensors, controls, and DVOM test points.
Check Out the FREE Demo Under “Software Package”
-
Textbook: Electric and Hybrid Vehicles – 2nd Edition
Electric and hybrid vehicles are now the present, not the future. This straightforward and highly illustrated full color textbook is endorsed by the Institute of the Motor Industry and introduces the subject for further education and undergraduate students as well as technicians.
A perfect complement to the Switch Electric Vehicle Kit, this textbook is considered a gold-standard for Electric Vehicle Training. Electric and Hybrid Vehicles by Tom Denton covers the different types of electric vehicle, costs and emissions, and the charging infrastructure, before moving on to explain how hybrid and electric vehicles work.
-
Textbook: Build Your Own Electric Vehicle
Thoroughly revised and expanded, Build Your Own Electric Vehicle, Third Edition, is your go-to guide for converting an internal combustion engine vehicle to electric or building an EV from the ground up. Students will learn all about the wide variety of EVs available for purchase and how they’re being built.
BUILD, CONVERT, OR BUY A STATE-OF-THE-ART ELECTRIC VEHICLE
Students will learn all the latest breakthroughs, including AC propulsion and regenerative braking systems, intelligent controllers, batteries, and charging technologies.
A perfect complement to the Switch Electric Vehicle Kit, this textbook is considered a gold-standard for Electric Vehicle Training.
-
Over-Center, Variable Displacement Pump Cutaway
Cutaway Over-Center Axial Piston Pump – Hydrostatic Training Model
This handcrafted axial piston pump cutaway is the ultimate hands-on teaching tool for hydrostatic drive systems. Featuring over-center swashplate movement, a cutaway barrel to the drive shaft, dual main pressure relief valves, and a transparent rear-mounted gerotor charge pump, it offers unmatched visibility into internal pump dynamics. Students can manually operate the swashplate and rotate the input shaft to see how reversing flow is achieved without changing shaft direction—bringing advanced fluid power concepts vividly to life.
-
Load-sensing Mobile Directional Control Valve Cutaway
Cutaway Load-Sensing Mobile Directional Control Valve – MDCV-LS-CM
Turn complex hydraulics into clear, visual learning with this advanced load-sensing mobile directional control valve trainer. Featuring a dissected valve body and a transparent-mounted shuttle valve, this fully functional model visually demonstrates how a single load-sense line monitors pressure in both A and B ports. Ideal for teaching mobile hydraulic systems, pump communication, and load-sense behavior, it’s the perfect training tool for simplifying system diagnostics and student understanding.
-
Mobile Directional Control Valve Cutaway Model
Cutaway Mobile Directional Control Valve – Fully Functional Sectional Valve Trainer
Bring hydraulic concepts to life with this sectional mobile directional control valve, precision-cut to reveal all seven internal valve functions. Students can interact with the moveable spool using the included control lever and explore integrated anti-cavitation valves, cylinder port reliefs, and load check valves. This hands-on training tool offers unmatched visibility and clarity, transforming complex valve systems into tangible, easy-to-understand mechanics.
-
Two-Stage Directional Control Valve Cutaway
Cutaway Two-Stage Hydraulic Directional Control Valve – Sizes 03 & 08
Demystify advanced hydraulics with this handcrafted, cutaway two-stage directional control valve—featuring fully functional solenoid-controlled, pilot-operated spools. Designed for fluid power training, the internal and external drain paths and sub-plate mount are clearly visible. Every internal oil passage is exposed, revealing how the pilot valve actuates the main valve. This interactive model transforms complex hydraulic concepts into instant “aha” moments for students.
-
Cutaway Hydraulic Cylinder
Enhance hands-on hydraulics training with our clear acrylic cutaway hydraulic cylinder. Designed for educational environments, this fully functional, double-acting, single-rod cylinder features a transparent body that reveals the internal piston, rod, seals, and flow paths in real time. Ideal for teaching hydraulic flow and pressure intensification, seal function, and component interaction, it includes breathable ports for smooth rod movement and visual learning. Perfect for technical training labs and fluid power courses.
-

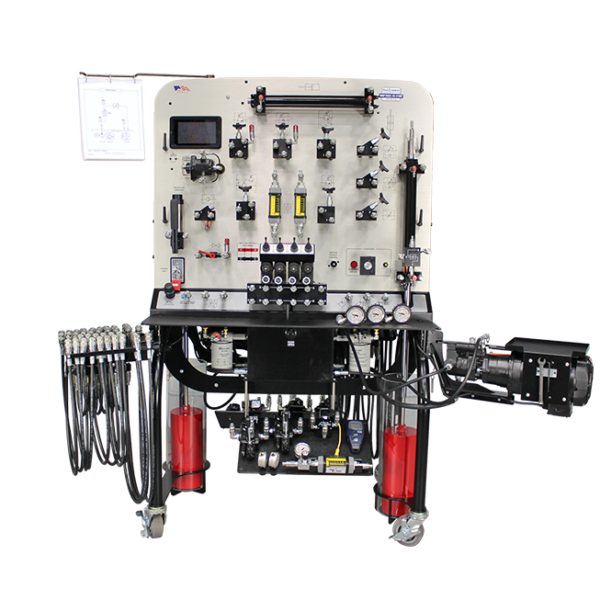

FPTI Hydraulics Training System with Troubleshooting
The MF102-H-TS Hydraulic Training System expands the foundational capabilities of the MF102-H by adding a powerful manual troubleshooting interface that allows learners to activate real hydraulic faults on demand. Using a panel-mounted touchscreen, instructors can introduce wear-pattern symptoms and system faults that mimic real-world machine failures, without the safety risks, complexity, or liability of live industrial equipment. Students must interpret system behavior, analyze symptoms, verify pressure and flow conditions, and isolate faults using a structured diagnostic process.
Engineered for technical colleges, industrial maintenance programs, and advanced workforce development, the MF102-H-TS gives learners a safe, repeatable way to master hydraulic troubleshooting. By combining the MF102’s robust component suite with a controlled fault-activation system, this trainer bridges the gap between understanding hydraulic theory and applying real troubleshooting logic in the field.
-

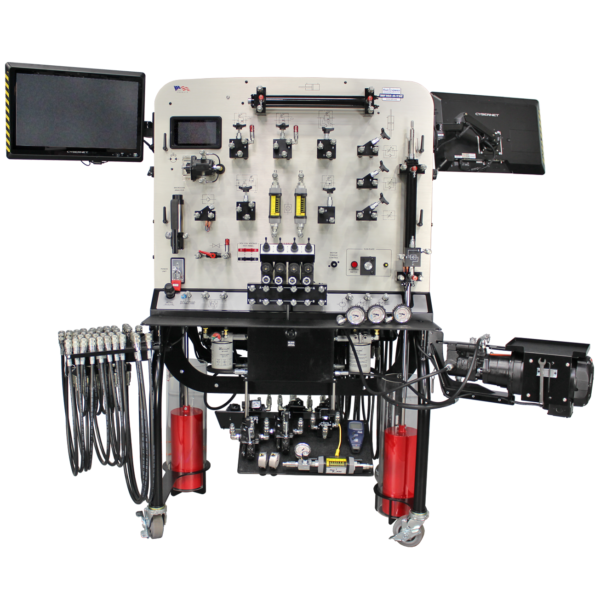

FPTI Hydraulics Training System with Troubleshooting and Touchscreen
Our Fluid Power Training Institute FPTI MF-102-H-TSE Hydraulic Training System with Troubleshooting and Electronic Fault Insertion takes hydraulics training to a whole new level.
The MF102-H-TSE Hydraulic Training System is the premier hydraulics and hydraulics troubleshooting training system on the market, engineered for advanced hydraulic troubleshooting and high-level technical training. Equipped with a powerful 22′′industrial touchscreen PC, the Electronic Touchscreen on this training system allows for automatic hydraulic faults to be inserted based on real-world wear patterns and component failure behavior. This creates authentic diagnostic scenarios where learners must evaluate symptoms, analyze performance data, and isolate root causes using professional troubleshooting methodology.
Designed for advanced industrial maintenance programs, mobile equipment diagnostics, mining, military, and heavy-equipment training academies, the MF102-H-TSE delivers unmatched realism and instructional control. By blending foundational hydraulics with software-driven fault simulation, the TSE accelerates technician readiness and builds deep confidence in diagnosing complex hydraulic systems.
This USA-made, industrial-grade system delivers over 40 hours of hands-on learning in hydraulics, safety, schematics, and advanced concepts. Perfect for technical classrooms, it features robust components, flexible configurations, and optional modules to expand capabilities. With expertly designed educational materials and real-world applications, the MF-102-H-TSE is the ultimate solution for teaching foundational and advanced hydraulics as well as troubleshooting. Discover unmatched quality and performance with this industry-leading training system today!
The hydraulics trainer comes in either single- or double-sided configurations and comes complete with instructional materials for teaching industrial hydraulics.
