Description

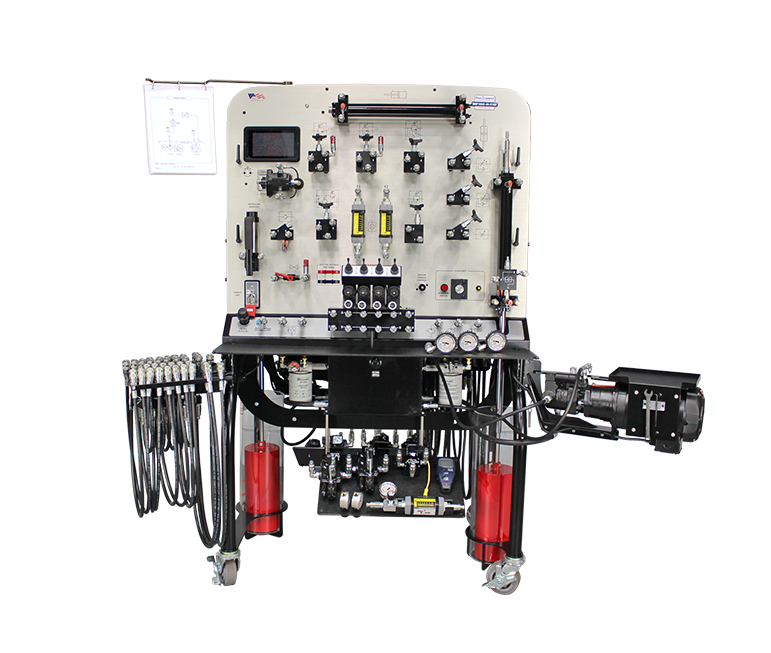

Why Choose the MF102-H-TS?
Take your hydraulics training to the next level with the MF-102-TS and start teaching systematic troubleshooting with real world context.
Key Features & Benefits
Manual Fault-Insertion Touchscreen
The TS model includes a panel-mounted touchscreen that allows instructors to activate hydraulic faults manually. Students diagnose realistic wear-pattern failures in real time.
Develops True Troubleshooting Skills
Learners must observe symptoms, interpret gauge and flowmeter readings, and follow proven diagnostic reasoning, essential skills for industrial and mobile equipment technicians.
Safe, Repeatable Training Environment
Faults are introduced without exposing students to dangerous failure conditions. Every scenario is controlled, observable, and easily reset.
Builds on the Foundation of the MF102-H
Retains all circuit-building, measurement, and hands-on hydraulic learning features of the MF102-H while adding advanced troubleshooting capability.
Ideal for Maintenance & Repair Programs
Students learn how to isolate problems such as actuator drift, pump starvation, pressure imbalance, incorrect valve spool behavior, and flow restrictions.
Real Industrial Components
Seven directional control valves, two cylinders, a hydraulic motor, pressure-compensated pumping system, and full instrumentation simulate true hydraulic system behavior.
MF102-H-TS — Specifications
Troubleshooting System (TS Feature Set)
- Manual fault activation via touchscreen
- Faults mimic real wear-pattern failures
- Real-time symptom observation
- Designed for structured diagnostic workflows
- Provides repeatable, safe troubleshooting practice
Hydraulic Power
- Axial piston-type pump, 0 GPM, pressure-compensated
- Adjustable compensator & adjustable flow
- Reservoir capacity: 5 gallons (17 liters)
- 10-micron spin-on filter with bypass gauge
Electric Drive
- TEFC electric motor, 115V, single-phase
- 1750 RPM, C-face mount
- Lockout/tagout on/off switch
- Thermal overload protection
Directional Control Valves (7 total)
- DO3 tandem-center solenoid valve + flow control
- DO3 closed-center solenoid valves + dual flow controls
- DO3 float-center solenoid valve + flow control
- Monoblock cylinder-spool valve with relief
- Monoblock motor-spool valve with relief
- (1) 2-position, 3-way solenoid cartridge valve
Pressure & Flow Controls
- Pilot-operated pressure relief valve
- Direct-acting relief valve
- Sequence valve
- Pressure-reducing valve
- Counterbalance valve (reverse-flow check)
- Needle valve
- Flow control valve
- Pressure-compensated flow control valve
- Standard check valve
- Pilot-operated check valve with manual override
Actuators
- 14″ single-rod double-acting cylinder
- 14″ double-rod cylinder with load engagement mechanism
- Bi-directional gear-type hydraulic motor
Touchscreen readings:
- Tachometer
- Ammeter
- Oil & ambient temperatures
- Stopwatch
Physical instruments:
- (2) flow meters: 0–2.0 GPM
- (3) pressure gauges: 0–1500 PSI (glycerin-filled)
Load Simulation
- 100 lb (45 kg) enclosed load system
- Mechanical engage/disengage latch
- Transparent safety enclosure
Hoses & Connections
- Hose storage caddy (swing-out/stow-away)
- Per side:
- (4) × 60″ hoses
- (8) × 46″ hoses
- (6) × 26″ hoses
- SAE 100-R1 hoses with flat-face quick-connect couplers
- (8) T-fittings per side
