Model #FP-MF102-H-TSE

FPTI Hydraulics Training System with Troubleshooting MF-102-H-TSE

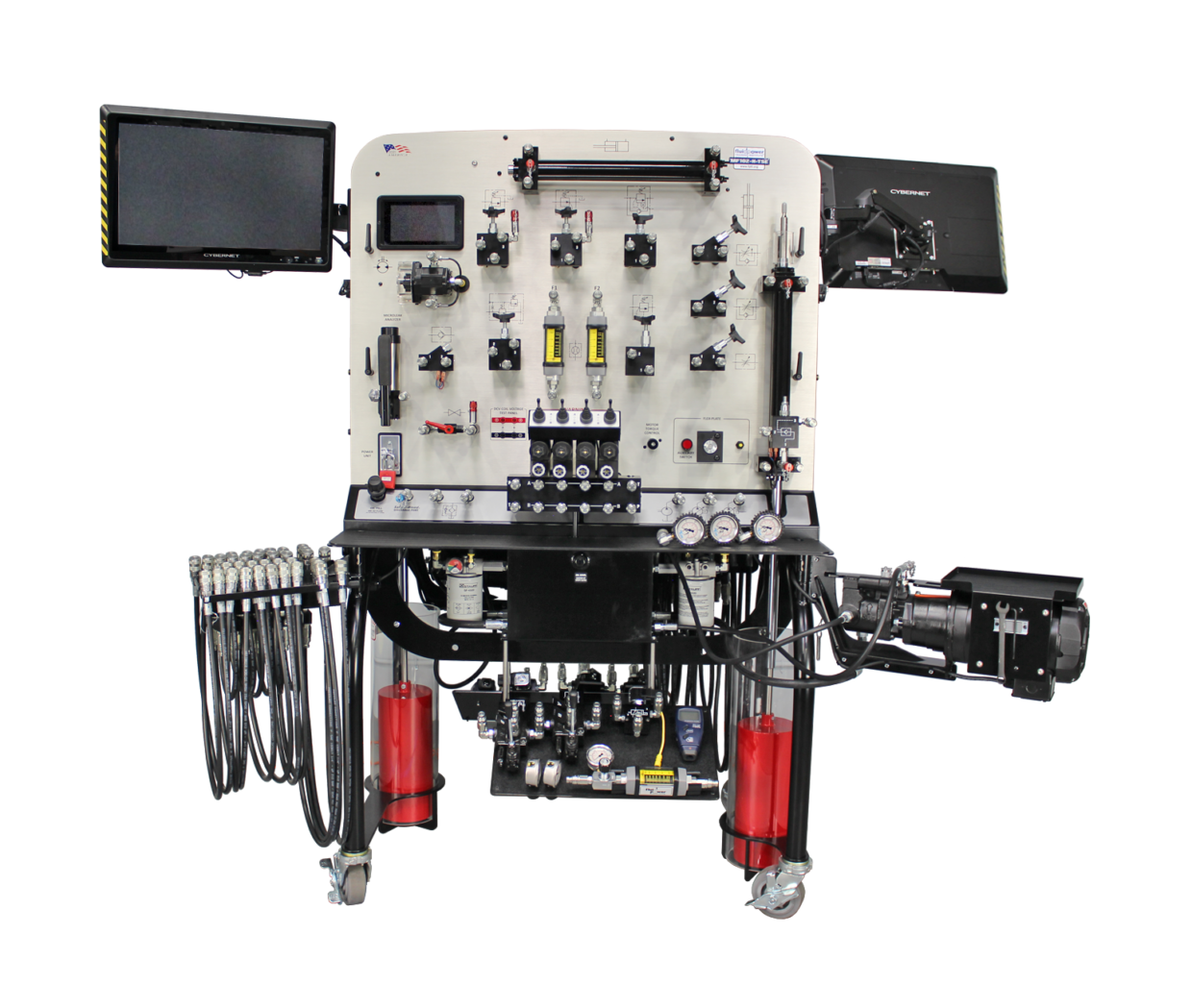

FPTI MF-102-H-TSE Hydraulics Training System with Troubleshooting

FPTI MF-102-H-TSE Hydraulics Training System with Troubleshooting

MF-102 Hydraulics Trainer Pump with Electric Motor

MF-102 Hydraulics Trainer Pump with Electric Motor

Hydraulic Hose Caddy on MF-102-H Hydraulics Trainer

Hydraulic Hose Caddy on MF-102-H Hydraulics Trainer

FPTI Hydraulics Trainer On/Off LOTO

FPTI Hydraulics Trainer On/Off LOTO

FPTI Hydraulics Trainer MF102 Valves

FPTI Hydraulics Trainer MF102 Valves

FPTI Hydraulics Trainer Cylinder Load

FPTI Hydraulics Trainer Cylinder Load

Hydraulic Pumps on FPTI MF-102-H

Hydraulic Pumps on FPTI MF-102-H

FPTI Hydraulics Trainer with Directional Control Valves

FPTI Hydraulics Trainer with Directional Control Valves

FPTI MF102 Pressure Gauges

FPTI MF102 Pressure Gauges

FPTI MF102 Hydraulics Training System Instrument Panel

FPTI MF102 Hydraulics Training System Instrument Panel

FPTI MF102 Flow Meters on Hydraulic Trainer

FPTI MF102 Flow Meters on Hydraulic Trainer

FPTI Load Capable Bi-Direction Gear-Type Motor

FPTI Load Capable Bi-Direction Gear-Type Motor

FPTI Single Acting Hydraulics Cylinder

FPTI Single Acting Hydraulics Cylinder

FPTI MF102 Double Acting Cylinder

FPTI MF102 Double Acting Cylinder

FPTI Hydraulics Trainer Reservoir

FPTI Hydraulics Trainer Reservoir

Micro Leak Check on Hydraulics Training System

Micro Leak Check on Hydraulics Training System

Faultable Components on the FPTI MF-102 Hydraulics Training System

Faultable Components on the FPTI MF-102 Hydraulics Training System

Electronic Troubleshooting Touchscreen on the MF-102-H-TSE Hydraulic Training System

Electronic Troubleshooting Touchscreen on the MF-102-H-TSE Hydraulic Training System

Insertable Faults on the MF-102-H-TSE Training System

Insertable Faults on the MF-102-H-TSE Training System

Our Fluid Power Training Institute FPTI MF-102-H-TSE Hydraulic Training System with Troubleshooting and Electronic Fault Insertion takes hydraulics training to a whole new level.

This USA-made, industrial-grade system delivers over 40 hours of hands-on learning in hydraulics, safety, schematics, and advanced concepts. Perfect for technical classrooms, it features robust components, flexible configurations, and optional modules to expand capabilities. With expertly designed educational materials and real-world applications, the MF-102-H-TSE is the ultimate solution for teaching foundational and advanced hydraulics as well as troubleshooting. Discover unmatched quality and performance with this industry-leading training system today!

The MF-102-H-TSE includes Electronic auto-fault insertion through a built-in PC panel with 22” touch-screen makes, which makes it possible for almost every component on the hydraulics training system to automatically “wear out.” The MF-102-H-TSE hydraulics training system with troubleshooting emulates real-world wear patterns in hydraulic components for students to gain real-world skills.

The hydraulics trainer comes in either single- or double-sided configurations and comes complete with instructional materials for teaching industrial hydraulics.

Pricing upon request

Description

Why Choose the MF102-H-TSE?

Masterfully develop thinking skills and problem-solving skills with the MF-102-H-TSE Hydraulics Training System with Troubleshooting. The MF-102-H-TSE Hydraulics training system’s activities are designed to let students practice what they are taught about theory, protocols, and practical demonstrations performed by their teachers. In no time at all you will have your students challenging each other as to who can troubleshoot a problem in the least amount of time, with the least number of attempts, and having replaced the least number of components: Isn’t that exactly what industry is crying for?

  • Comprehensive Learning: Cover foundational hydraulics skills, safety practices, and advanced concepts, including Pascal’s Law, pressure control, and flow dynamics. The system’s structured activities ensure maximum student retention with clear, defined outcomes.
  • Unmatched Flexibility: Teach fixed displacement, pressure-compensated, and load-sensing systems seamlessly. Optional Flex-Plate modules expand training capabilities, allowing integration of additional components or custom configurations.
  • Turnkey Training Solution: Includes expertly developed materials such as textbooks, workbooks, PowerPoint presentations, and interactive resources, created by hydraulics industry legend Rory S. McLaren.
  • Industrial-Grade Design: Built with all industrial components, this system is designed and manufactured in the USA to ensure durability and long-term reliability.
  • Safe and Space-Saving: Features zero-leak, quick-connect valves and a compact design that fits through standard doorways, making it ideal for any classroom or training space.

Available Configurations:
Choose between Single-Sided or Double-Sided models to best suit your classroom’s needs.

Whether you’re building foundational hydraulics knowledge or diving into advanced applications, the MF102-H stands out as the most versatile, robust, and effective training solution available.

Discover the MF102-H and elevate your training programs with Toolkit Technologies

The FPTI MF102-H is the best hydraulics training system for teaching foundational skills surrounding hydraulics, fluid power, fluid power safety, and more.

No longer will students be confused or intimidated with Pascal’s Law, inertia, power, resistance, pressure differential, series, parallel, and more – step-by-step and skill-by-skill we’re going to train students to master these technologies, concepts, skills and theories. With TOOLKIT and FPTI learning basic to advanced hydraulic concepts through hands-on training is easy and fun!

Educational Advantages

Allows students to:

  • Operate the hydraulic system through complete “load-cycles”
  • Replicate a fully functional industrial or mobile hydraulic system, which is capable of operating with or without load
  • Operate in fixed displacement, pressure-compensated, and pressure/flow pump environments

Includes:

  • Hydraulic components
  • Diagnostic instruments
  • Fixed displacement pump
  • Pressure-compensated pump
  • Load pump
  • Optional load-sensing and plug-n-play modules

Specifications

  1. Pump – Axial piston-type, variable volume, pressure-compensated; 3.78 Lpm (1.0 GPM); 69 bar (1000 PSI); adjustable pressure compensator; adjustable flow
  2. Electric motor – Single-phase; 115V; TEFC; 1750 RPM; C-face; thermal overload protection
  3. Electric motor on/off switch – Lockout/tagout mechanism; thermal overload protection with manual reset
  4. Hydraulic reservoir – capacity 17 liter (4.5 gallon)
  5. Filtration – 10 micron, spin on/off element w/bypass gauge
  6. Directional control valves – six (6) total; • One (1) DO3-type; tandem-center; 3-position; 4-way; spring-centered; solenoid-controlled; 24V coils. Also includes sandwich-mounted, knob-adjustable pump port flow control valve • Two (2) DO3-type; closed-center; 3-position; 4-way; spring-centered; solenoid-controlled; 24V coils. Also includes sandwich-mounted, dual, knob-adjustable flow control valves • One (1) DO3-type; float-center; 3-position; 4-way; spring-centered; solenoid-controlled; 24V coils. Also includes sandwich-mounted, knob-adjustable pump port flow control valve • One (1) Monoblock type valve; cylinder spool; 3-position; 4-way; spring-centered; hand-lever operated w/pressure relief valve • One (1) Monoblock type valve; motor spool; 3-position; 4-way; spring-centered; hand-lever operated w/pressure relief valve
  7. Pilot-operated pressure relief valve w/knob adjustment
  8. Direct-operated pressure relief valve w/knob adjustment
  9. Sequence valve w/knob adjustment
  10. Pressure reducing valve w/knob adjustment
  11. Counterbalance valve with internal reverse flow check w/knob adjustment
  12. Needle valve w/knob adjustment
  13. Flow control valve w/knob adjustment
  14. Pressure-compensated flow control valve restrictor-type; reverse flow bypass; w/knob adjustment
  15. Check valve
  16. Pilot-operated check valve w/manual over ride
  17. Cylinder – single-rod; double-acting; 36 cm (14”) stroke
  18. Cylinder – double-rod; double-acting; 36 cm (14”) stroke; w/load engage/disengage mechanism
  19. Motor – bi-directional; gear-type; w/infinitely variable torque capability
  20. Flow meters – two (2); 7.56 Lpm (0-2.0 GPM)
  21. Tachometer – hydraulic motor shaft speed (displayed on the panel-mounted touchscreen)
  22. Ammeter – (displayed on the panel-mounted touchscreen)
  23. Dual scale temperature gauge – Oil temperature & ambient temperature (displayed on the panel-mounted touchscreen)
  24. Stopwatch – (displayed on the panel-mounted touchscreen)
  25. Pressure gauges – three (3); 103 bar (0-1500 PSI); PSI and bar scales; 6.35 cm (2.5”); glycerine-filled; Bourdon tube type; w/flat-face type quick-connect/disconnect type valves
  26. Load – 45 Kg (100 lb); Engage/disengage with mechanical latch. Entire weight is contained within a transparent safety enclosure.
  27. Hose storage caddy – stow-away/swing-out
  28. Hoses (per side) – • Four (4) – 152 cm (60”) • Eight (8) – 107 cm (42”) • Six (6) – 71 cm (28”) SAE 100-R1; w/flat-face type quick-connect/ disconnect type valves
  29. T’s – eight (8) (per side) w/flat-face type quick-connect/disconnect type valves
  30. Pressure/leak test pump with quick-connect/ disconnect valve





Relevant Subjects

  • Ag Mechanics
  • Automotive Technology

Designed for:

  • High School
  • Industry
  • Technical College

Additional information

Weight 1200 lbs
Dimensions 54 × 42 × 84 in
Manufacturer

Features

Automotive I Diesel I Hands-On Training I Industrial Hydraulics, Mobile Hydraulic System Training I Hydraulic components I Diagnostic Instruments I Fixed Displacement Pump I Pressure-Compensated Pump I Load pump I Optional load-sensing and I Hydraulics, Safety

Product Documents

Single Sided Basic through Advanced Hydraulics Trainer
