Model #DCV-08-CM

Two-Stage Directional Control Valve Cutaway

Cutaway DCV Directional Control Valve

CM-DCV08_2025

DCV08 Cutaway Training Model

DCV08 Cutaway Training Model

DCV08 Training Cutaway Model

DCV08 Training Cutaway Model

Cutaway DCV Directional Control Valve
DCV08 Cutaway Training Model
DCV08 Training Cutaway Model

Cutaway Two-Stage Hydraulic Directional Control Valve – Sizes 03 & 08

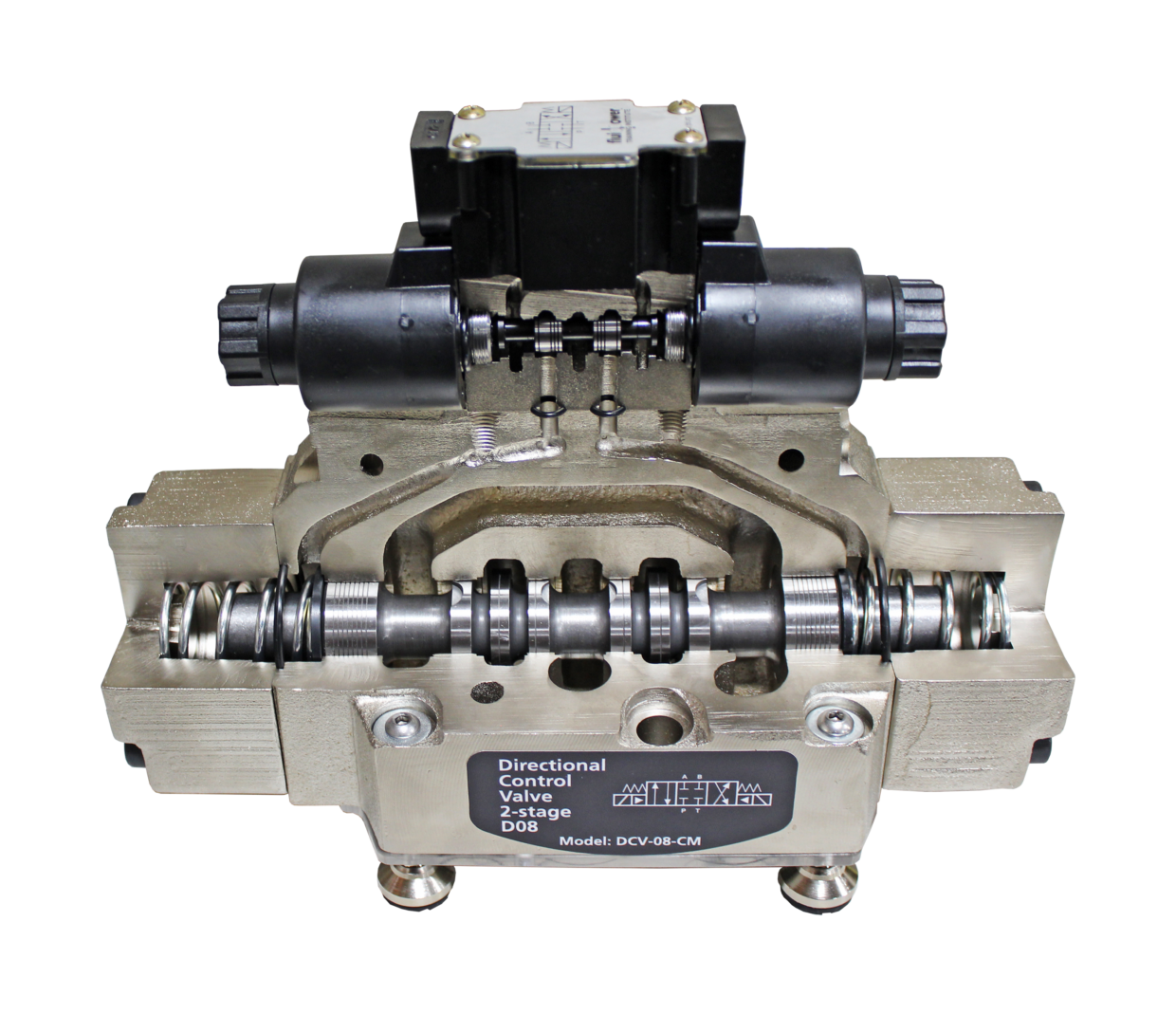

Demystify advanced hydraulics with this handcrafted, cutaway two-stage directional control valve—featuring fully functional solenoid-controlled, pilot-operated spools. Designed for fluid power training, the internal and external drain paths and sub-plate mount are clearly visible. Every internal oil passage is exposed, revealing how the pilot valve actuates the main valve. This interactive model transforms complex hydraulic concepts into instant “aha” moments for students.

Pricing upon request

Add to quote list

Description

Cutaway DCV for Hydraulics Training and manufacturing understanding. Two-stage, 03 and 08 size valves, solenoid-controlled, pilot-operated, internal or external drain, and, sub-plate mount. The description alone is intimidating. Put this stunning cutaway model in front of any student, and in literally a few minutes you will hear the words, “I get it!”

Handcrafted with amazing detail, every internal oil passage is exposed to make it possible to see exactly how the pilot valve drives the main valve. Both the pilot control valve and main valve have fully-functional spools.

Relevant Subjects

  • Ag Mechanics
  • Automotive Technology
  • Fluid Power

Additional information

Weight 1200 lbs
Dimensions 54 × 42 × 84 in
Manufacturer

Features

Automotive I Diesel I Hands-On Training I Industrial Hydraulics, Mobile Hydraulic System Training I Hydraulic components I Diagnostic Instruments I Fixed Displacement Pump I Pressure-Compensated Pump I Load pump I Optional load-sensing and I Hydraulics, Safety
