Automation Trainer ATS-200

Swappable PLC version with wiring to terminal blocks

AS-202 with terminal blocks

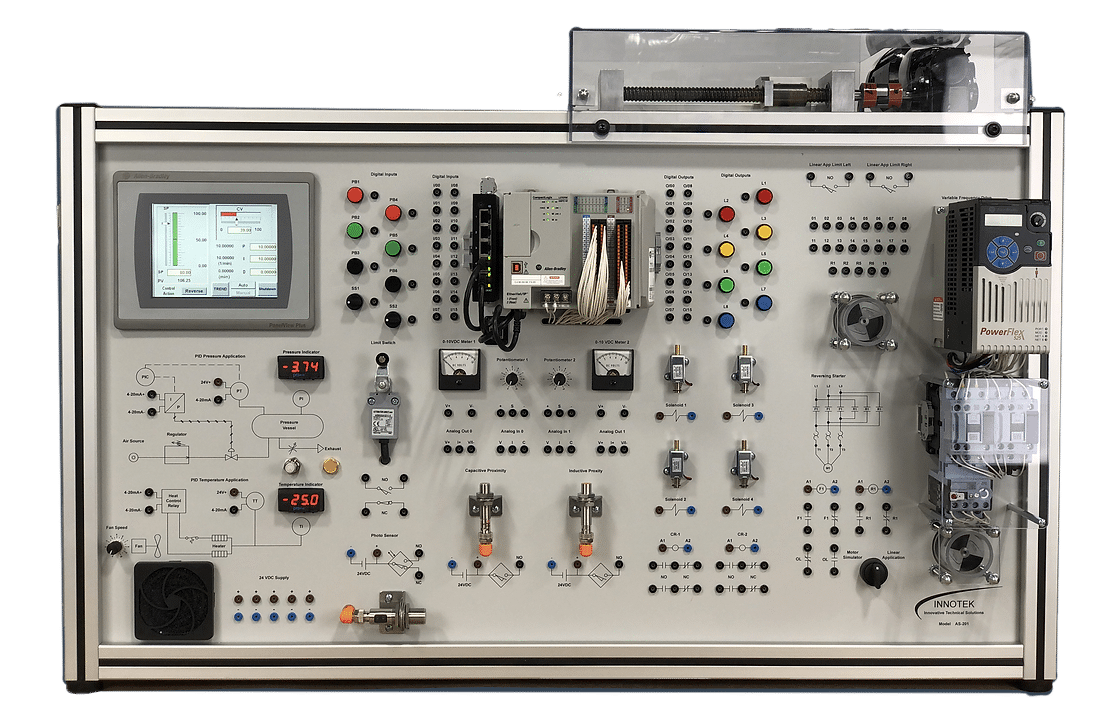

Automation Trainer Front ATS-200

The ATS-200 Automation Training System provides students with a hardware platform for performing hands-on skills development activities for automation technologies operations. The tabletop or mobile platform includes various applications which can be quickly connected to provide advanced activities, expanding the learning objectives beyond simple on/off functionality.

The all-in-one PLC Training System includes:

◉ Operator Control Application

◉ Sensors and Switches Application

◉ Pneumatic Actuator/Valve Application

◉ Linear Ball Screw Application

◉ BCD Thumbwheel and 7 Segment Display

◉ Dual Analog Potentiometer and Meters

◉ Motor Control Application

◉ Variable Speed Drive (Any Brand)

◉ PLC (Any Brand)

◉ HMI (Any Brand)

◉ PID Pressure Application

◉ PID Temperature Application

The system shown as tabletop trainer with banana jack connections. The unit can be purchased with a mobile frame with all components pre-wired to the PLC requiring no additional connections.

Pricing upon request

Add to quote list

Description

Base System Components

Aluminum Tabletop Frame
120Vac Power Entry
Fuse Protection
(16) Fault Switches
Integrated PLC (Any Brand)
- (16) Digital Inputs
- (16) Digital Outputs
- (2) Analog Inputs (0-10V/4-20mA)
- (2) Analog Outputs (0-10V/4-20mA)
Integrated HMI (Any Brand)
Integrated VFD (Any Brand)
Ethernet Switch
Pressure Regulator

Onboard Applications

PLC Automation Training System (ATS-200)

Operator Control
- (6) Pushbuttons
- (2) Selector Switches
- (8) Indicators
Sensors and Actuators
- (1) Inductive Proximity Sensor
- (1) Capacitive Proximity Sensor
- (1) Diffuse Photo Sensor
- (1) Limit Switch
- (4) Solenoid Actuators
Variable Speed Drive
- (1) VFD
- (1) 3-Phase Motor
Forward/Reversing Motor Control
- (1) Reversing Motor Starter
- (1) 3-Phase Motor
Electro-Mechanical Application
- (1) 3-Phase Motor
- (1) Mechanical Ball Screw Assembly
- (1) Reversing Contactor
- (2) Limit Switches
PID Pressure Control Application
- (1) Pressure Transmitter (4-20mA)
- (1) Pressure Control Valve (4-20mA)
PID Temperature Control Application
- (1) Temperature Transmitter (4-20mA)
- (1) RTD PT100 Sensor
- (1) Heating Unit (4-20mA)

Relevant Subjects

Electrical
Manufacturing
Mechatronics

Designed for:

Industry
Technical College

Additional information

Manufacturer	SMC, Innotek, Rockwell Automation

Product Documents

Automation Trainer ATS-200

Datasheet Automation Training System

autoSIM-200 is a great complement to this system for simulation of electrical and control circuits
