Model #EM-200-25

Speed & Positions Sensors Trainer

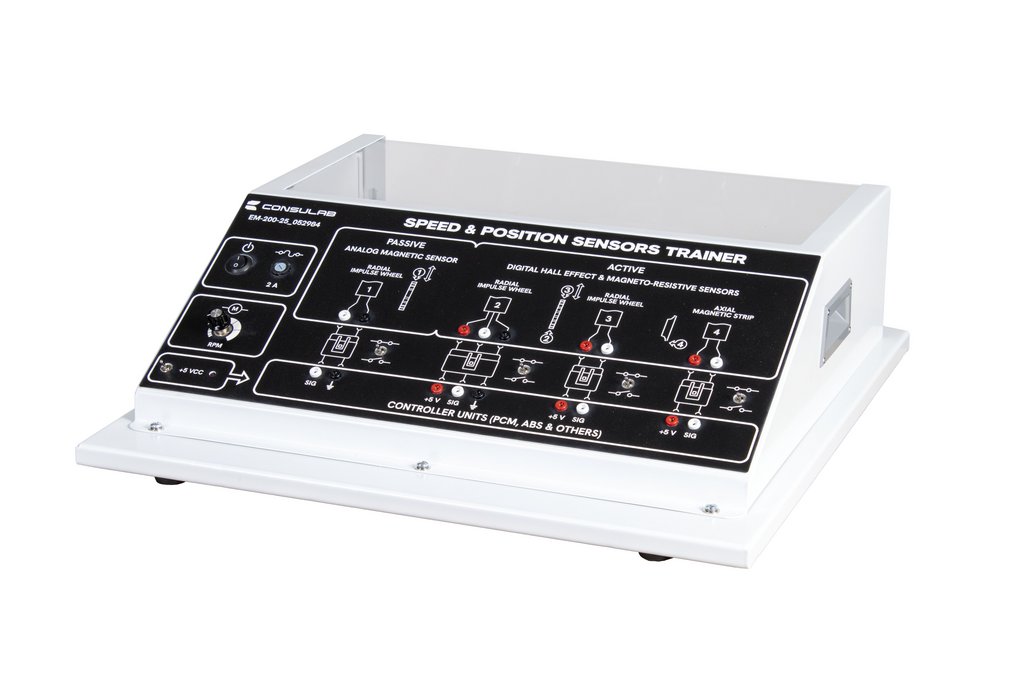

EM-200-25_052984 Training System

ConsuLab Speed and Position Sensors Trainer

internal speed and position sensors

consulab sensors trainer

training aid for sensors

Speed and Position Sensors training system

EM-200-25_052984 Training System
internal speed and position sensors
training aid for sensors

The EM-200-25 Speed and Position Sensors trainer is used to demonstrate the operation, diagnosis and testing of common types of analog and digital speed and position sensors as they operate on a real vehicle all in one convenient place.
The trainer provides a safe and effective method of demonstrating the operating principles of different types of speed and position sensors that are common on today’s cars and trucks normally used for wheel speed, engine speed and vehicle speed.
All sensors are mounted on a common shaft which is driven by a variable speed electric motor to create different operating conditions. Comes with complete curriculum and courseware!





Pricing upon request

Add to quote list

Description

Educational Advantages

  • Turnkey product with complete curriculum and courseware
  • Demonstrates full functionality of both analog (passive) and digital (active) speed and position sensors
  • Electronically controlled variable speed drive motor allows sensor operation from zero RPM through both steady and variable speeds
  • Magneto-resistive magnetic strip sensor can detect instant movement of rotation or 0 kph/mph
  • Allows full diagnosis and testing with DVOM and oscilloscope
  • Switches allow the sensor to be disconnected/connected in the circuit for real-world testing purposes.
  • Allows student demonstrations of the operation, diagnosis and testing of:
    • CKP (Crankshaft Position Sensors)
    • CMP (Camshaft Position Sensors)
    • VVT (Variable Valve Timing) sensors
    • ABS Wheel speed sensors (all types)
    • RPM and Vehicle Speed sensors
    • Provides clear visualization of sensors without access limitations of a vehicle

Main Features

  • Sensor test receptacles for hookup of DVOM and Oscilloscope
  • Radial analog (passive) inductive sensor with adjustable air gap to show effects on operation
  • Digital Hall-Effect sensor
  • Radial and axial digital (active) magneto-resistive sensors (adjustable radial sensor to show effect on operation)
  • Equipped with sensor disconnect switches for separate testing of both harness side and/or component side of sensor
  • Trainer has a bench top design that allows clear student visualization of sensor operation, diagnosis and testing
  • Electronically controlled variable speed electric drive motor
  • 120V AC/DC power supply included



Relevant Subjects

  • A6 - Electrical/Electronic Systems
  • Automotive Technology

Designed for:

  • High School
  • Industry
  • Technical College

Additional information

Manufacturer

Features

Automotive I Diesel I Hands-On Training I Electronic Systems I Operational Training of Analog and Digital Sensors
ASE Categories

A6

Product Documents

Speed & Positions Sensors Trainer
