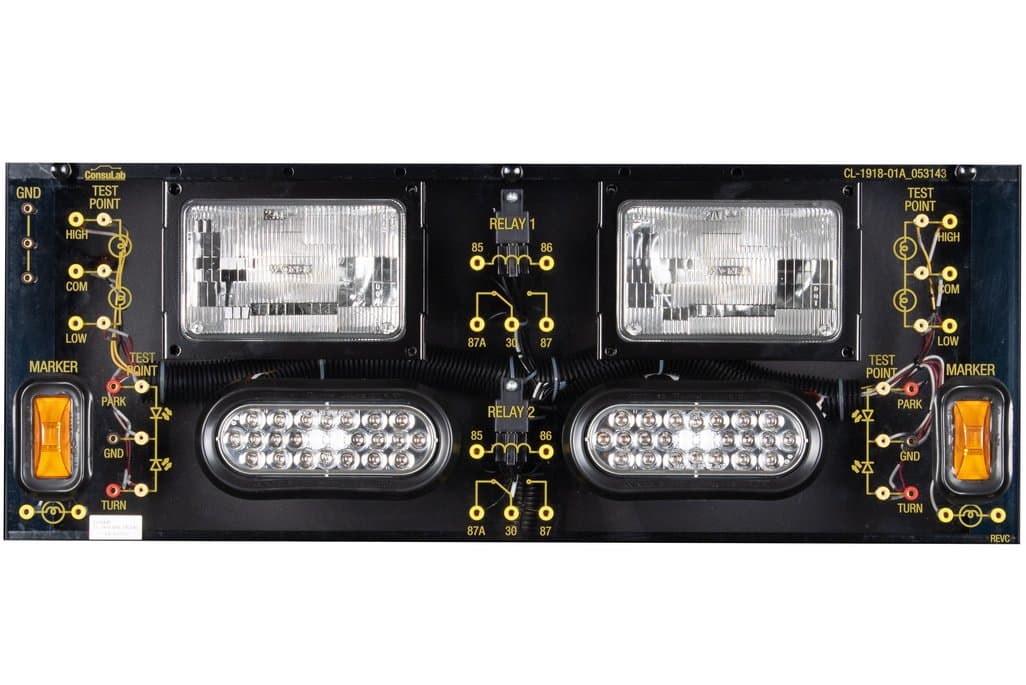

The CL-1918 Automotive Lighting Trainer is configured with 4mm wiring sockets and all wiring is completed using the 4mm jumper wires. There are also 2mm test sockets located throughout the system to allow testing of key points in the circuits.
All faults can be tested and found by the student from the front side of the panel using the combination of 4mm and 2mm sockets.
Design and Function
All components on the trainer have been chosen to maximize teaching value and provide a robust environment where your students can learn without a fear of damaging the product. All connection points are protected against erroneous wiring.
The ConsuLab CL-1918-3D Double-sided Automotive Lighting System Trainer utilizes the “Moduponent®” design feature which allows unlimited expansion capabilities. A Moduponent® consists of a clear Plexiglas sheet with components, wiring and socket test points attached. The Moduponent® is attached to the trainers using disconnect fasteners which allows easy adaptation and configuration for different applications.
Each side is considered a discrete workstation and is designed to have no affect on the opposing side. Typically, 2 students are assigned per workstation. This means a double-sided trainer can occupy 4 students at a time.
CL-1918 Panels and Mounting
All 1918 series panels and products are interchangeable and can fit on any 1918 series upright or tabletop/wall mount stand. The product is available with an upright stand CL-1918-10 or a tabletop/wall mount stand CL-1918-10S. The upright stand includes wire holders and a drawer for each side and the power supply is integrated into the trainer.
The stand is made of steel and is powder coated and has 4 swivel casters with 2 locking casters. The upright stand is made of steel and powder coated and has fixation points for wall mounting. There are removable feet for use as a tabletop unit.
