Model #EM-122-HN02_052621

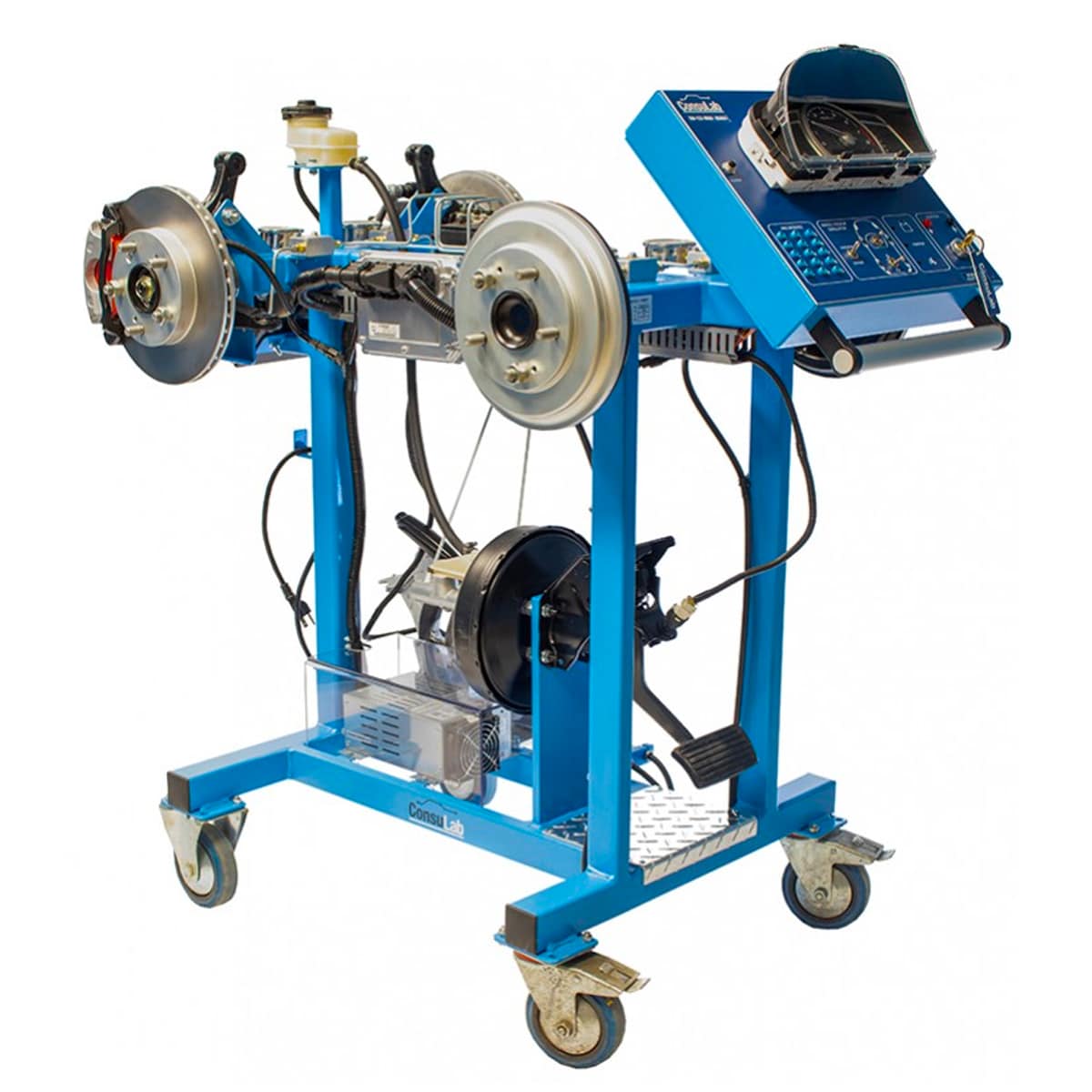

Four-Wheel Honda ABS Trainer with Faults

ConsuLab’s EM-122-HN02 Four-wheel Honda ABS trainer is used to demonstrate the functionality of the ABS braking system as it operates on a real vehicle. This automotive training aid includes mechanical faults in the friction components, which are designed to be diagnosed by students while performing a brake inspection.

This trainer also comes with six insertable, electronic faults, and is built with OEM components based on the 2006-2010 Honda Civic platform. The trainer can be used in the classroom environment for demonstrations to students.

The instructor can manually select which wheel combinations are desired to lockup prior to application of brake pedal. The trainer provides a safe and effective method of demonstrating the principles of braking systems used on today’s vehicles.

All routine brake service procedures can be performed on this trainer including component replacement, adjustments and hydraulic bleeding

Pricing upon request

Product Documents

Four-Wheel Honda ABS Trainer with Faults

Description

Many NATEF and Red Seal tasks can be accomplished using this trainer. Trainer can fit through a standard 30” door opening. Provides “real world” brake pedal feedback pulsations during ABS operation.

Educational Advantages

  • Demonstrates full functionality of a 4-wheel ABS system
  • Allows choice of wheel combinations to “lock-up” during ABS operation
  • Allows choice of ABS “application” timing for clearer demonstrations
  • Mechanical faults in the friction components are designed to be diagnosed by students while performing a brake inspection
  • Trainer follows OEM wiring schematics
  • Trainer can be used for full mechanical service and repair operations of:
  • Front disc brakes
  • Rear drum brakes
  • Master Cylinder & Hydraulic system (w/ pedal)
  • ABS Electrical System (w/ wheel speed sensors)
  • ABS Hydraulic Control unit
  • Parking Brake system

Application

2006-2010 Honda Civic

Features

“Real” automotive components with fully functional ABS 3-channel hydraulic system. Equipped with DLC for scan tool data stream hookup.

  • Mechanical faults in the friction components are designed to be diagnosed by students while performing a brake inspection
  • OEM vehicle instrument panel with indicator lamps
  • ABS Control Unit breakout box for hookup of DVOM and Oscilloscope
  • Hydraulic pressure gauges at each wheel (4)
  • Fault insertion box (lockable) 6 faults
  • Four (4) hubs equipped with brakes (2 discs and 2 drums)(NOTE- discs, drums, wheel cylinders, calipers and all friction materials are new. All other OEM components are recycled from actual vehicles)
  • Fully functional parking brake system
  • 55A DC power supply included
  • Heavy Duty metal stand with casters for easy transport of trainer
  • Power requirements: 110V @ 20 amps or 220V @ 10 amps (specify when ordering)
  • Sturdy powder coated metal stand with two locking swivel and two fixed casters

Learning Topics

  • A5 - Brakes
  • Automotive Technology

Grade/Skill Level

Designed for:

  • High School
  • Industry
  • K-8
  • Technical College
  • University

Additional information

Manufacturer

,

Features

Automotive I Diesel I Hands-On Training I Four-wheel Honda ABS Training System I OEM Wiring Schematics I NATEF and Red Seal Training

ASE Categories

A5
