Description

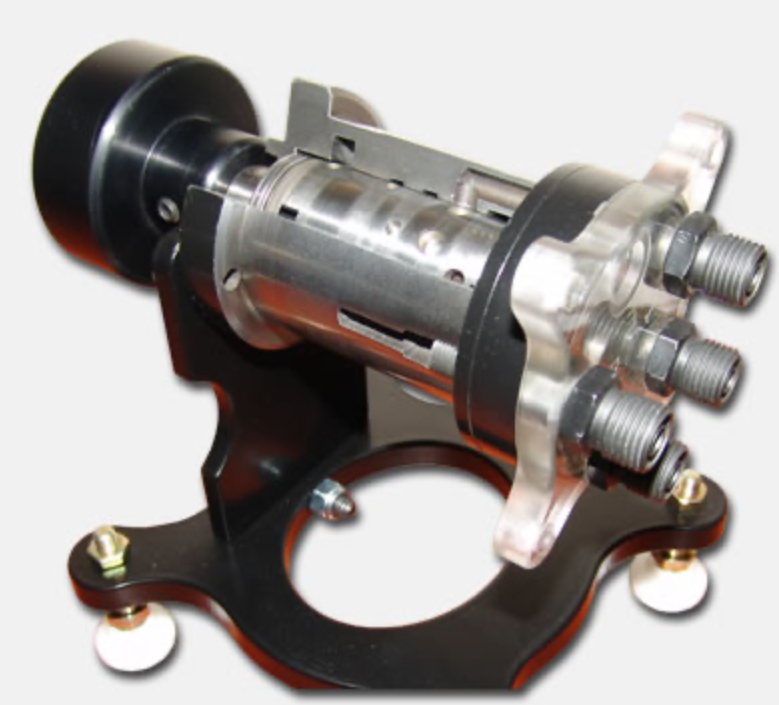

This orbital cutaway exposes the metering section, spool-and-sleeve assembly, and centering springs, giving students a complete visualization of how hydraulic steering systems function. By examining internal metering elements, learners gain practical insight into steering flow, manual metering, and the mechanics of articulated vehicle steering systems.
The detailed cutaway allows users to trace fluid flow through the unit, showing how input from the steering wheel is translated into controlled hydraulic output. As the unit is examined, students can better understand how the spool and sleeve interact to meter flow and how centering springs return the system to neutral. Built on a durable base for repeated classroom use, this model supports hands-on learning and a deeper understanding of real-world steering system operation.
A hands-on training model that clearly demonstrates the internal operation of hydraulic steering (orbital) systems.
