Description

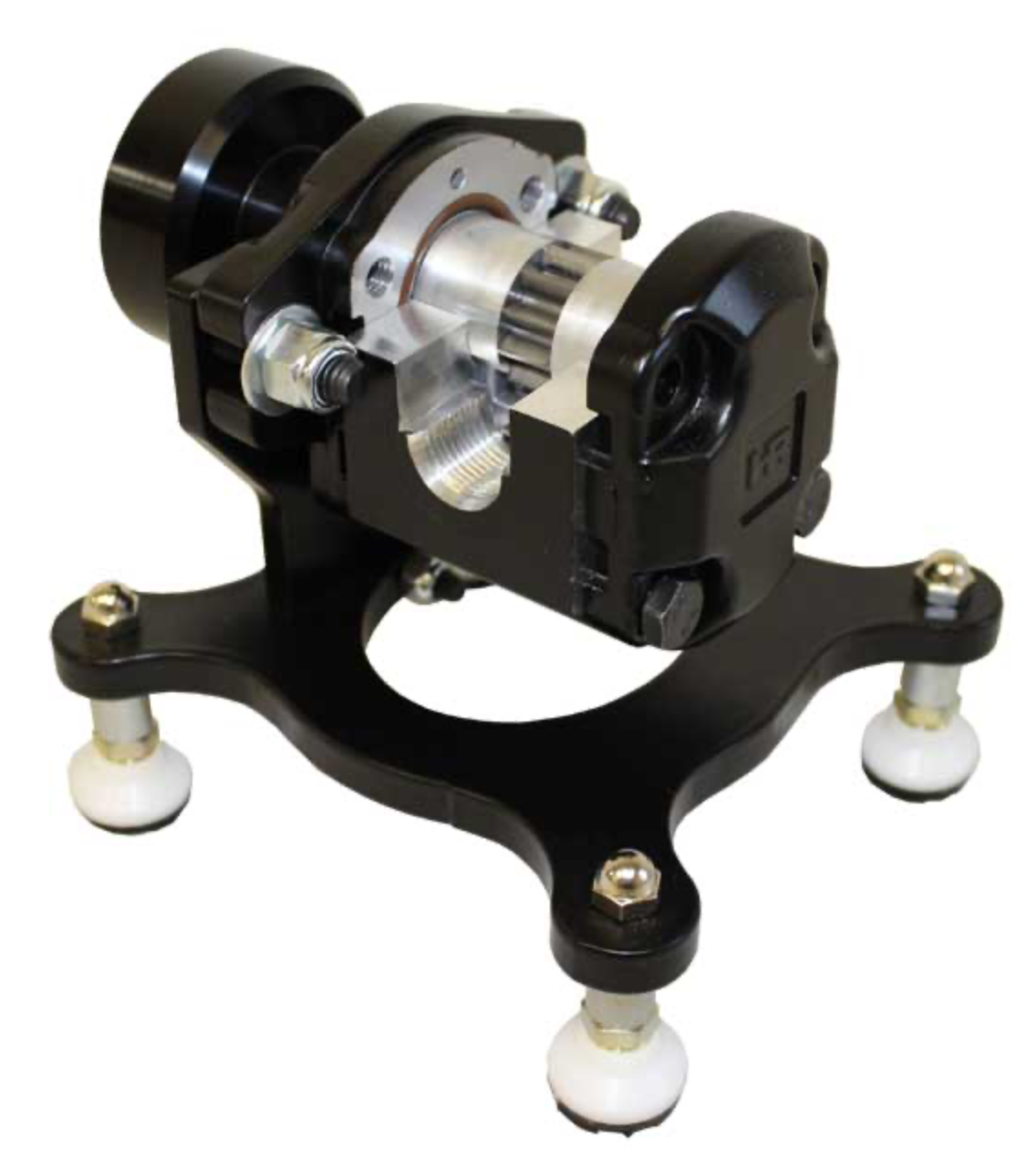

This cutaway vividly demonstrates the simplicity and reliability of an external gear pump. Students can rotate the shaft to watch the gears mesh and unmesh while observing how oil is carried around the housing. It’s an excellent teaching tool for introducing gear pump operation, volumetric efficiency, and wear patterns.
The open cutaway design provides a clear view of fluid movement between the gear teeth and housing, helping learners understand how flow is generated and where inefficiencies can occur. As the pump is manually rotated, users can see how clearances, sealing surfaces, and gear engagement impact performance and internal leakage. Mounted on a durable base for stability, this model is built for repeated classroom use and hands-on demonstrations.
A simple, hands-on training model that clearly illustrates the fundamentals of external gear pump operation and performance.
