Model #HV-125-BWP_053334

Air Brake Driving Simulator

ConsuLab Heavy Truck Air Brake Driving Simulator

ConsuLab Air Brake Driving Simulator HV-125-BWP

Air Brake Driving Simulator

Air Brake Driving Simulator

hv125bwpima1 (1) (1)

hv125bwpima1 (1) (1)

The ConsuLab Air Brake Driving Simulator HV-125-BWP_053334 is everything you’ve always dreamed about when teaching heavy truck and diesel air brakes systems. Imagine being able to take the entire class out for a road test and watch live data on a scan tool and see what happens when you drive on dry pavement, during full throttle acceleration and a panic stop.

Students get to hear, feel and see how all the electronic control valves react during these ABS ESP and ATC events – The trainer is built to be used as a live driving simulator in front of a whole class as well as for learning the foundation air brake system, performing electrical and pneumatic diagnosis with the aid of fault boxes, with optional defective components.

Simulate a drive on an icy road and start to lose control, and you will get to demonstrate how the ABS and ESP functions.

Pricing upon request

Description

Simulate a drive on an icy road and start to lose control, and you will get to demonstrate how the ABS and ESP functions. Students get to hear, feel and see how all the electronic control valves react during these ABS ESP and ATC events. You can demonstrate trailer sway, you can demonstrate traction control events. The trainer is built to be used as a live driving simulator in front of a whole class as well as for learning the foundation air brake system, performing electrical and pneumatic diagnosis with the aid of fault boxes, with optional defective components. The trainer has been designed around the FMVSS121 standard and allows students perform their pre-trip inspections. All components are D.O.T. approved. Optional foundation brake wheel ends with a drum front axle, spring brake disc and spring brake drum configuration give full coverage of how the mechanical foundation section of the brake’s functions. Students can see the S-cams move, you can watch the slack adjusters adjust, you can over or under adjust the brakes and see the results on the foundation disc and drum cutaways.

Educational Advantages

  • The learner can easily observe the various functions of the trainer and the interaction of the tractor and trailer
  • The air brake trainer fits through standard classroom doorways and is simple to set up
  • The wheel speeds for all wheels are shown on individual screens throughout the trainer
  • The operator controls are positioned so that the operator does not obscure the operation of the system
  • Many of the components are mounted to the board using thumbnuts so that the components may be removed without any tooling
  • Faulted components (available as an option) are supplied that can be installed for diagnosis training

Applications

  • The tractor system is a Bendix EC-60 premium system configured as 4S4M, this means 4 sensors and 4 modulator valves
  • The trailer system is a complete standalone system with Wabco RSSplus, ABS and rollover protection electronic stability control
  • The Bendix AD-IS air dryer is used that includes a purge tank to clean the filter cartridge and safety valve for over pressure protection. This means that there are just two primary and secondary tanks for the main system
  • The primary and secondary tanks have drain valves. All tanks are equipped with safety valves set at the industry standard 150psi

Optional Equipment

  • 52890-1 HV-124-DISC, Trailer Disc with Spring Brake for HV-125
  • 52890-2 HV-124-DRUM, Trailer Drum with Spring Brake for HV-125
  • 52890-3 HV-124-FDRUM, Front Tractor Drum with no Spring Brake for HV-125
  • 30255-7 Set of Breakout Boxes with T-Harnesses for Premium
  • 30256 Set of Defective Components for HV-125
  • 93788 NEXIQ USB Link 2 Communication Interface

Relevant Subjects

  • Diesel and Heavy Truck

Designed for:

  • High School
  • Industry
  • Technical College

Additional information

Manufacturer

Features

Automotive I Diesel I Hands-On Training I Bendix EC-60 Premium System configured as 4S4M Trainer I ABS and ESP Function Training I Wabco RSSplus, ABS and Rollover Protection Electronic Stability Control

Educational Advantages

The learner can easily observe the various functions of the trainer and the interaction of the tractor and trailer, The air brake trainer fits through standard classroom doorways and is simple to set up, The wheel speeds for all wheels are shown on individual screens throughout the trainer, The operator controls are positioned so that the operator does not obscure the operation of the system, Many of the components are mounted to the board using thumbnuts so that the components may be removed without any tooling, Faulted components (available as an option) are supplied that can be installed for diagnosis training

Product Documents

Air Brake Driving Simulator

Consulab_Logo_White copy

A Leader In

Automotive

Hydraulics & Pneumatics

Trucks & Heavy Equipment

Electrical

OEM Training Tools Driven by Experience

All ConsuLab products begin as OEM components found in industry. Our team of experts adapt them for educational purposes by making them safer, more visible, and more classroom/training friendly. This includes adding troubleshooting fault boxes where possible so students are learning important diagnostic skills from the very beginning.

This philosophy helps students rapidly develop exceptional critical thinking skills, troubleshooting skills, and industry relevant automotive knowledge for their future careers.

ConsuLab is a proud supporter of SkillsUSA and WorldSKILLS.

A Lot Has Changed in Modern Vehicles

And our team of education specialists and engineers approach every training aid with the goal of preparing students for their careers - now and in the future. We ensure each product represents the latest in automotive and heavy vehicle technology.

From the latest in smart sensors technologies, to ADAS, networking, and scan tools, ConsuLab training systems are designed and built for your students to be prepared for the modern workforce.

Experience, Realized

For more than 40 years, ConsuLab has been a manufacturer of high quality, innovative training equipment for vocational and technical training institutions, in addition to various industry companies. Today, ConsuLab is a world leader in this area.

Our Education Team brings over 200 years of experience in the classroom and in their own shops to help (new and seasoned) educators effectively teach modern students in modern classrooms.

auto-teaching_crop

Consulab Trainers

Our ConsuLab Training Aids segment Transportation Technology Systems into easy-to-digest training areas for students to learn complete and holistic concepts - from fundamentals to advanced. Our training systems are best-in-class, and can be conceptualized by the following form factors:

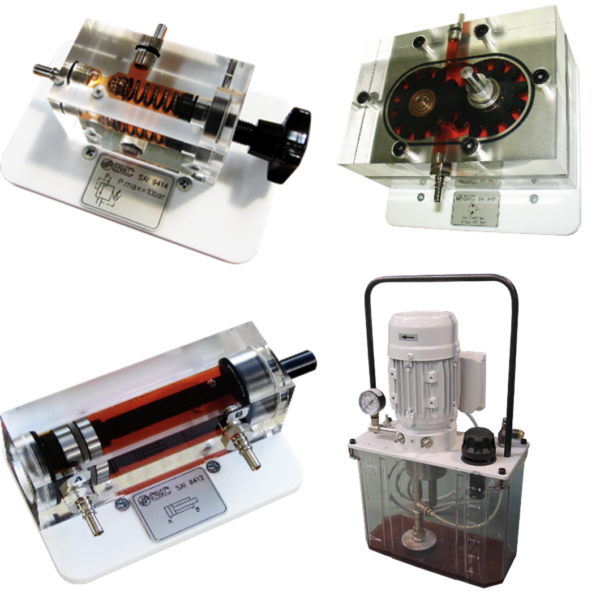

These classroom tools are great for illustrating and demonstrating complex and hard-to-grasp concepts by revealing the inner workings of any mechanical or electro-mechanical part on the vehicle. Automotive and Diesel Cutaways are an invaluable tool for the classroom.
