SMC Basic Pneumatics Training System PNEU-401

Pneutrainer-400

SMC Basic Pneumatics Training System PNEU-401
SMC Basic Pneumatics Training System PNEU-401
SMC Basic Pneumatics Training System PNEU-401
SMC Basic Pneumatics Training System PNEU-401
SMC Basic Pneumatics Training System PNEU-401

Model #PNEU-405

SMC Pneumatics and Electropneumatics Training System (PNEU-405)

SMC, the worldwide leading manufacturer of Pneumatic Components and Technologies, has developed the most state-of-the-art and robust training system for teaching Pneumatics and Electro-Pneumatics Fundamentals to schools, training centers, and colleges. All components are industrial, used by companies around the world, so you can rest assured that your pneumatics learning directly translates to on-the-job relevance.

SMC’s PNEU-405 combines the Basic Pneumatics and Basic Electro-Pneumatics training packages into one comprehensive, hands-on training solution for the study of fluid power. The complete training system for industry-required skills development and in the area of Basic Pneumatics and Electro-Pneumatics, the PNEU-405 includes all air preparation components, mechanical valves, air-operated valves, flow control equipment, actuators, and accessories for hands-on pneumatics training at the high school, technical college and industry levels.

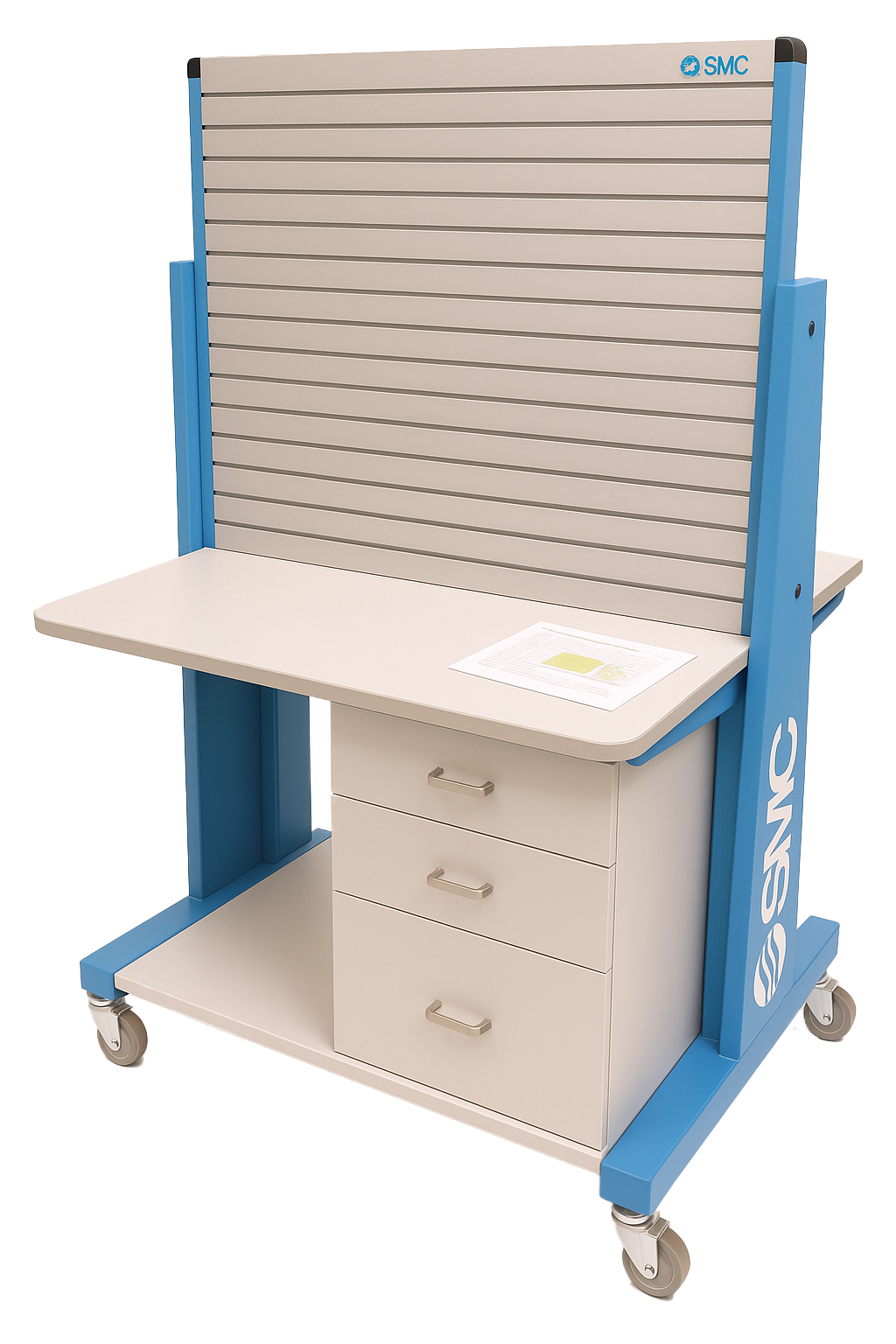

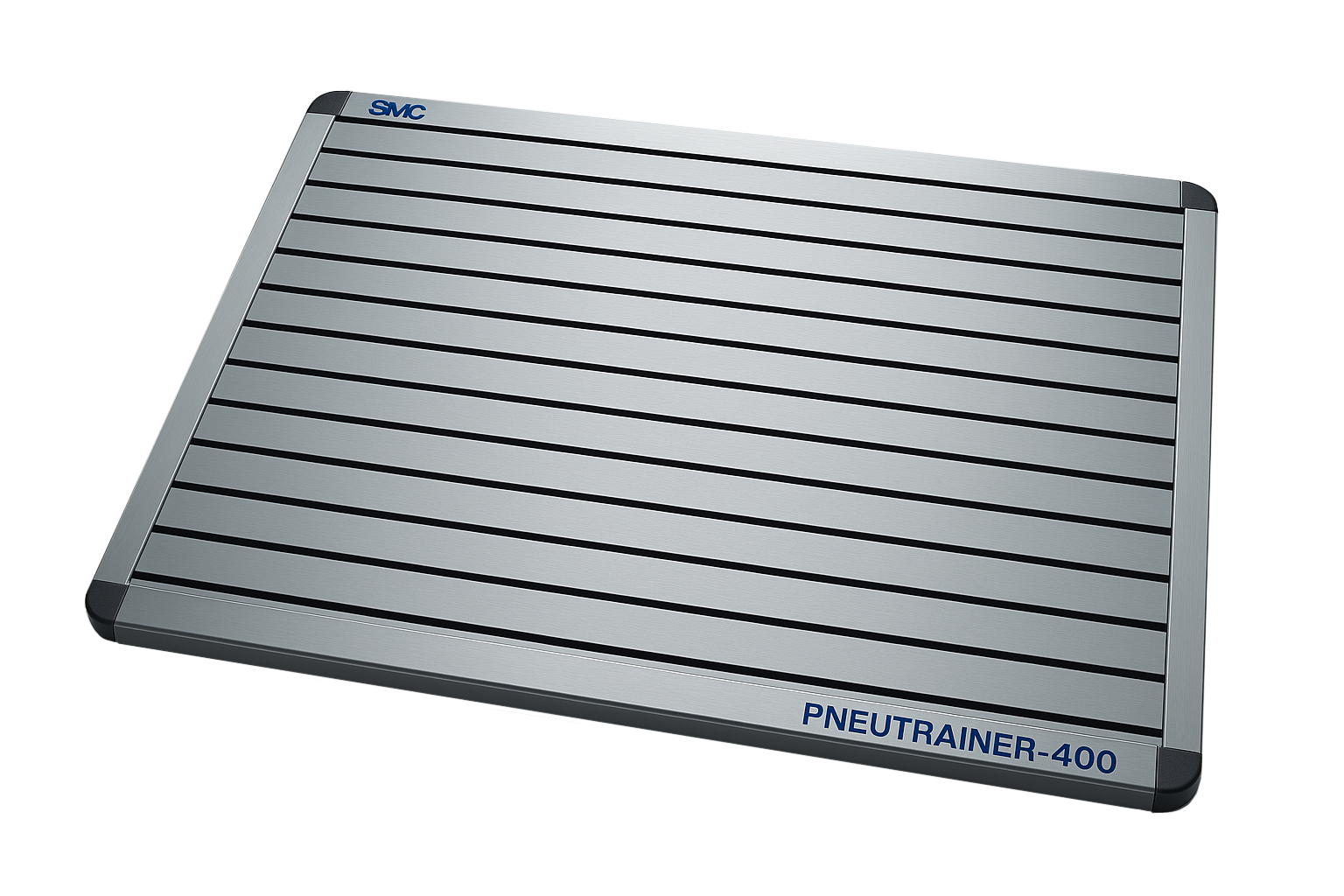

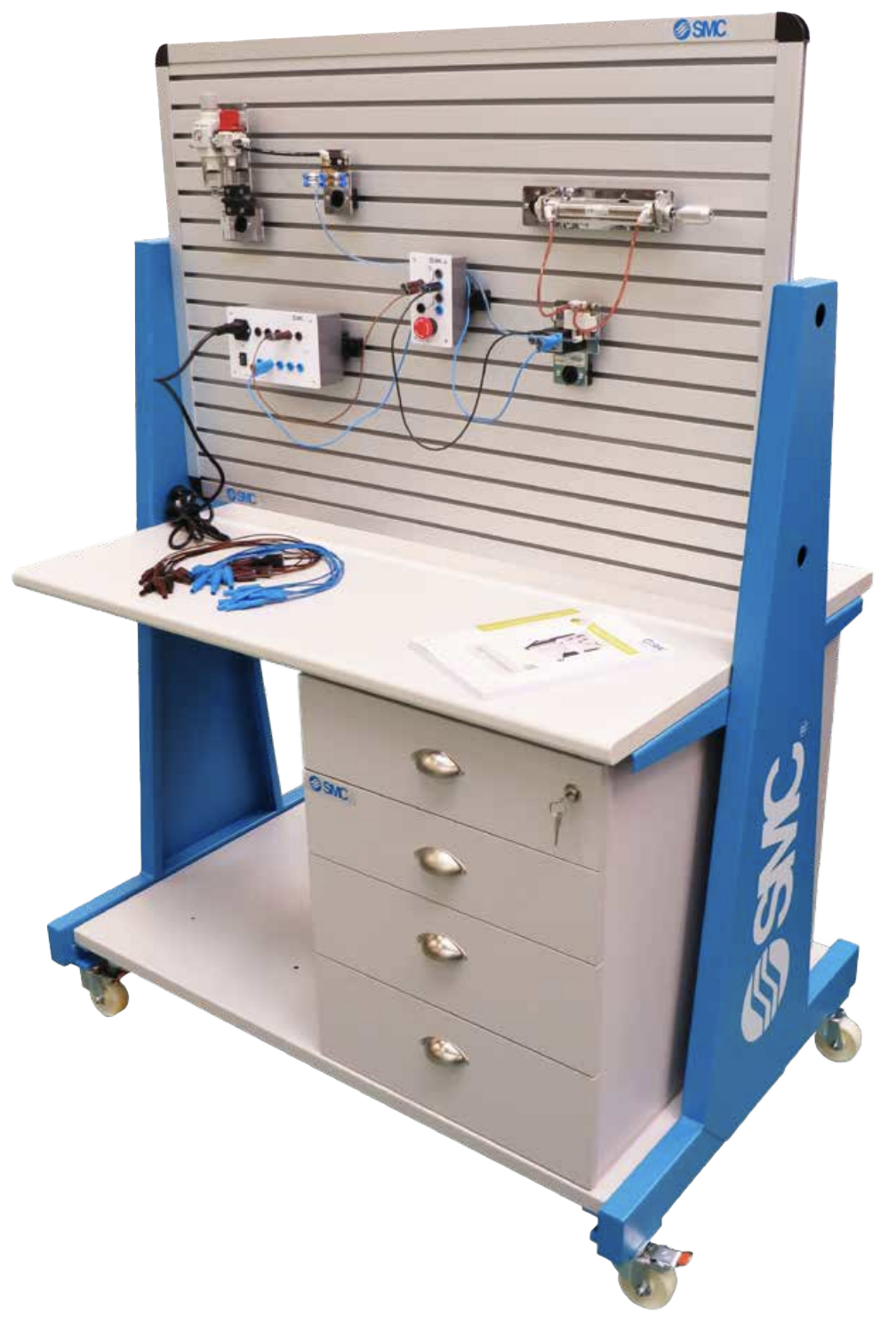

The Pneutrainer-400 comes with modular design that allows several customizable options to suite your training needs. Choose you form factor (mobile cart or tabletop), single or double-sided, and choose your training package!

SMC Pneumatics training systems are complete with interactive lesson plans, curriculum, user activities, eLearning and simulation software for the world’s most complete and comprehensive Pneumatics training platforms.



Pricing upon request

Form Factor

Pneumatic Training Sets

Single-Sided or Double-Sided

Product Documents

Pneutrainer-400

Software package

Learn more about SMC and Toolkit’s incredible software options to complement your pneumatics training.

SMC autoSIM-200

SMC eLearning-200



Description

SMC, the worldwide leading manufacturer of Pneumatic Components and Technologies, has developed the most state-of-the-art and robust training system for teaching Pneumatics and Electro-Pneumatics Fundamentals to schools, training centers, and colleges. All components are industrial, used by companies around the world, so you can rest assured that your pneumatics learning directly translates to on-the-job relevance.

Modular Options allow for standard training on all-industrial components.

Air Cleaning unit with 3/2 distribution valve

– 5 um filtering.

– It will include a 3/2 discharge valve with silencer for connection and disconnection of the rest of the circuit.

– Possibility of vertical and horizontal positioning.

QUANTITY: 1

Distribution block

– It will include 8-outlet distribution block, one Couch fittings and non-return system.

– Direct coupling to the air cleaning unit.

QUANTITY: 1

Pressure regulator with pressure gauge

– Operating pressure: from 0 to 10 bar.

– It will incIude double-scale pressure gauge.

QUANTITY: 1

1MPa pressure gauge

– It will include a double-entry and double scale: (0-1 MPa / 0-140 psi).

QUANTITY: 1

3/2 NC valve, operated by push button

– Grade-level push button, normally in closed position, spring return.

QUANTITY: 2

3/2 NC/NO valve, operated by a push button

– It will include a 3/2 port valve, which the user can convert from normally-open to normally-closed, as required.

– Spring-return.

QUANTITY: 1

3/2 NC valve, operated by an emergency knob

– Driven by approved emergency-type knob. Spring-return action.

QUANTITY: 1

FC 3/2 NC valve, operated by Roller lever

– Mechanical Roller action.

QUANTITY: 2

FC 3/2 NC valve. Operated by one-way roller lever

– One-way Roller lever.

QUANTITY: 1

3/2 NC switch-operated double valve

– It will include 3/2 port valve with locking system.

QUANTITY: 1

5/2 valve with 2-position selector

– Power-assisted valve driven by a locking switch.

QUANTITY: 1

3/2 NC/NO, air operated single valve

– It will include a 3/2 valve, which the user can convert from NO to NC, as required.

– Spring-return. Manually action facility.

QUANTITY: 1

3/2 NC convertible valve

– It will include a Basic timer, convertible from NC to NO.

– Timing range, 0 to 5s.

QUANTITY: 1

Air operated 5/2 single valve

– Spring-return pneumatic pilot valve.

– Manual operation facility.

QUANTITY: 1

Air operated 5/2 double valve

– Double piloting with memory function.

– Manual operation facility.

QUANTITY: 3

“OR” function

– It will include a single circuit selector with “OR” logic function.

QUANTITY: 1

Double “OR” valve

– It will include double circuit selector with logic function “OR”.

QUANTITY: 1

“AND” function

– It will include a single-simultaneous valve with an “AND” logic function.

QUANTITY: 1

Single direction speed controller (double)

– It will include two single direction speed controllers, operated manually.

QUANTITY: 2

Quick exhaust valve

– It will include a free exhaust valve with silencer.

QUANTITY: 1

Single acting cylinder

– Rod normally retracted.

– Stainless steel construction. Diameter: 20 mm. Stroke: 50 mm.

– Rubber cushion with built-in magnetic detection and rail.

QUANTITY: 1

Double acting cylinder with rubber cushion

– Stainless steel construction. Diameter: 20 mm. Stroke: 100 mm.

– Rubber cushion with built-in magnetic detection and rail.

QUANTITY: 2

3/2 NC single solenoid valve

– Low consumption: 0,55 W.

– LED display and surge absorber.

– Spring and air reset.

– Normally closed.

– Power-assisted system

QUANTITY: 1

5/2 single solenoid valve

– Low consumption: 0,55W.

– LED display and surge absorber.

– Spring and air reset.

– Power-assisted system.

QUANTITY: 2

5/2 double solenoid valve

– Low consumption: 0,55W

– LED display and surge absorber.

– Spring and air reset.

– Power-assisted system.

QUANTITY: 3

Power supply

– Input voltage: 100 – 240 VAC

– Output: 24 V / 2.5 A

– Protection against short circuits. Input switch and LED display.

– Supply cable included.

QUANTITY: 1

Set of electrical inputs (Button pad with 3 push-buttons)

– 4mm terminals for use with snap connectors.

– Two push-buttons and a locking push-button.

– Independent light indicator.

– Two push button switch contacts.

QUANTITY: 1

Set of 3 relays

– It will include three relays with 24V coil and 4 switchable contacts.

– Relay-active led.

– 4mm terminals for use with snap connection cables.

QUANTITY: 1

Indicators (pilots, buzzer)

– It will include 8 pilot lights and a buzzer.

– Supplementary terminals for power distribution.

– 4mm terminals for snap connection cables.

QUANTITY: 1

Electrical distributor

– It will include 4 blocks of 4×4 mm interconnected terminals for snap connection cables

– It will allow the user to carry out simple interconnections for complex circuits on different parts of the panel.

QUANTITY: 1

Reed auto switch

– Operating voltage: 24V

– Maximum current: 40mA.

– It will include LED display.

QUANTITY: 4

Electrical end of stroke

– It will include Roller-driven end of stroke with switchable electric contact.

QUANTITY: 2

Electric contact pressure switch

– It will include pneumatic-electrical converter.

– 0-0,8 MPa adjustable with pressure indicator display.

– Switchable contact.

QUANTITY: 1

Pressure gauge with electrical contact

– Pressure switch function included in a pressure gauge.

– Pressure range: 0 to 10 bar.

– Suitable for checking in-line pressure.

QUANTITY: 1

20+20 m set of 4 mm blue/white flexible tube.

– Polyuretane tube, exterior diameter: 4mm, two-tone colour, for connections on pneumatic circuits.

QUANTITY: 1

Set of 10 tee fittings

– Set of 10 one-touch fittings for 4 mm tubes.

QUANTITY: 1

Set of 5 plugs, 1/8”

– It will include a 5-plug set for pressure outputs of 1/8”.

QUANTITY: 1

Set of 10×4 mm plastic plugs

– Tool for plugging pressure outlets in 4 mm tube.

QUANTITY: 1

Tube-cutter

– Tool for clean cuts, perpendicular to the length of the tube.

QUANTITY: 1

Set of connection cables

– It will include 30x 4mm (diameter) snap connection cables with different colours and lengths:

– 50 cm cables: brown (x6), blue (x6) and black (x3)

– 10 cm cables: brown (x6), blue (x6) and black (x3)

QUANTITY: 1

Boxes containing components

– It will include a box in Eurobox format allowing orderly storage of components.

– It will include heat-formed polystyrene trays for housing of components to ease their identification and control.

QUANTITY: 1

10 m set of 6 mm black flexible tube.

– Polyuretane tube, exterior diameter: 6mm, black, for connections between air cleaning unit and distribution block.

QUANTITY: 1

Tube-extractor

– Tool for an easy and quick extraction of the pipe (4 to 6 mm diameter).

QUANTITY: 1

Set of manuals and documentation

– Unit specifications.

– Operations manual.

– Technical dossiers for all components.

– Student dossiers with pneumatic electropneumatic activities proposed.

– Teacher`s dossiers with solutions for the activities provided for the student.

QUANTITY: 1

CD-ROM, Pneumatic slides

– It will include a set of slide in “Power Point” format organised into various chapters, which may be used as back-up for the teacher in the teaching-training process.

QUANTITY: 1
