HVAC Electrical Diagnostics Skills Trainer

Name: HVAC Electrical Diagnostics Training System
Brand: HVAC Simulator
SKU: CB-1212

HVAC Simulator - Electrical Diagnostics

HVAC Electrical Simulator

Fundamental Electrical Skills Trainers for HVAC Technicians

HVAC Simulator for Skills Training

HVAC Technician Trainer

HVAC Electrical Technician Trainers

HVAC Sim Trainer

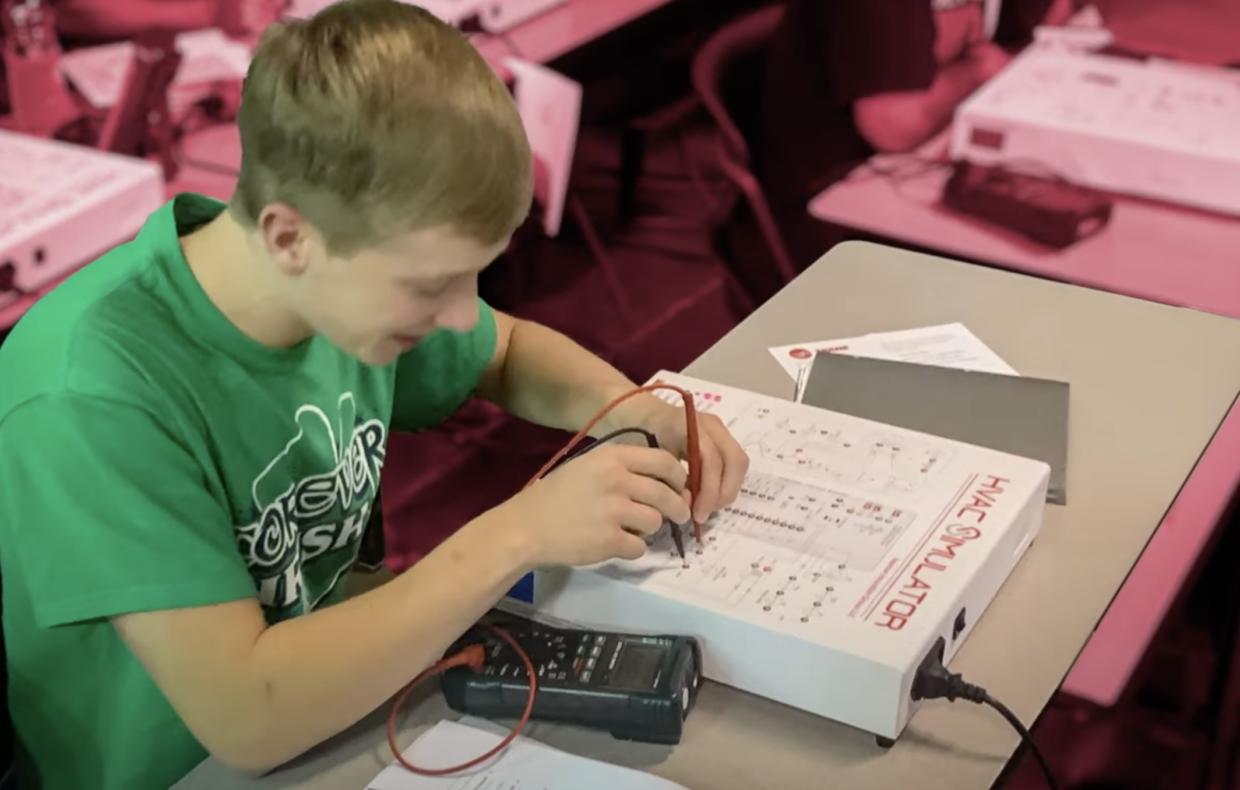

Students on HVAC Simulator

The HVAC Electric Diagnostics Training Simulator is a tabletop training system designed for HVAC training programs to teach schematic reading and needed hands-on diagnostic skills. Users can simulate real-world scenarios by measuring voltage, resistance, and microamps at over 60 points using a multimeter, working with an interactive schematic instead of live equipment.

Featuring 32 fault conditions (16 heating, 16 cooling), the simulator mimics issues like open compressor windings and dirty flame sensors. Models are available for different HVAC brands, including Carrier, Bryant, and ICP systems, in both physical and digital formats.

This is the perfect fundamental training tool for all HVAC learners!

Pricing upon request

HVAC Simulator Type

Electrical Trainer - Carrier/Bryant/Payne

Electrical Trainer - ICP/Tempstar/Heil

Electrical Trainer - Universal

Textbooks and Digital

Carrier/Bryant/Payne Electrical Digital Technician

Carrier/Bryant/Payne Electrical Digital Technician (Instructor Version)

Comfort Cooling Simulator

Add to quote list

What is the HVAC Electrical Diagnostics Simulator?

The HVAC Simulator is a simulation tool that combines hands-on training and schematic reading. It allows its users to check fault codes and pick up electrical readings of components with a multimeter as they would in the field; however, users are working on an interactive schematic diagram instead of live equipment. This tool builds its users’ understanding of the relationship between the schematic and electrical field components.

Using a multimeter, users will measure voltage, resistance, or microamps from over 60 different points on the simulator. The HVAC Simulator also comes with an LED fault indicator and mimics several fault conditions, from open compressor windings to a dirty flame sensor.

Above all, it’s a teaching tool that allows students and entry-level technicians to understand the electrical fundamentals of HVAC troubleshooting, improve their ability to read schematics, and boost their confidence using a multimeter in a safe, controlled environment.

HVAC Simulator Technician Cover CB1212 w barcode_2

HVAC Electrical Fundamentals - Technician Book

The Electrical Fundamentals – Heating Curriculum Technician Workbook provides a structure to lead a technician though 16 faults and 8 exercises to learn how to read schematic drawings and diagnose no call for heat from a furnace. This workbook can be used as a self-study or in a classroom setting with an instructor.

This workbook provides a structure to lead a technician though 32 faults and 8 exercises to learn how to read schematic drawings and diagnose no call for heat from a furnace.

This workbook works with both Electrical HVAC Simulator models, CB-1212 and TS-1212, on both platforms, Desktop and Digital.

Note: One Technician Workbook comes with purchase of Desktop Electrical HVAC Simulator.

HVAC Electrical Fundamentals - Instructor Book

The Electrical Fundamentals – Heating Curriculum Instructor Workbook provides a structure for an instructor to lead a a class though 32 faults and 8 exercises to learn how to read schematic drawings and diagnose no call for heat from a furnace.

This workbook provides a structure to lead a technician or class though 32 faults and 8 exercises to learn how to read schematic drawings and diagnose no call for heat from a furnace with guided discussion topics and assessments.

This workbook works with both Electrical HVAC Simulator models, CB-1212 and TS-1212, on both platforms, Desktop and Digital.

Note: One Technician Workbook comes with purchase of Desktop Electrical HVAC Simulator.

HVAC-Simulator-Comfort-Cooling-Technician-Cover

HVAC Comfort Cooling Fundamentals - Technician Book

The Refrigeration Theory – Comfort Cooling Curriculum Technician Workbook provides a structure to lead a technician though 11 diagnostic conditions, commonly seen in the field. Chapters include information on refrigeration fundamentals, airflow before charge, and non-invasive system check. This workbook can be used as a self-study or in a classroom setting with an instructor.

The Comfort Cooling Simulator is the FIRST A2L Diagnostic trainer available on the market.

This workbook provides a structure to lead a technician though 16 faults and 8 exercises to learn how to read schematic drawings and diagnose no call for heat from a furnace.

This workbook works with both Electrical HVAC Simulator models, CB-1212 and TS-1212, on both platforms, Desktop and Digital.
