MF900-VETS

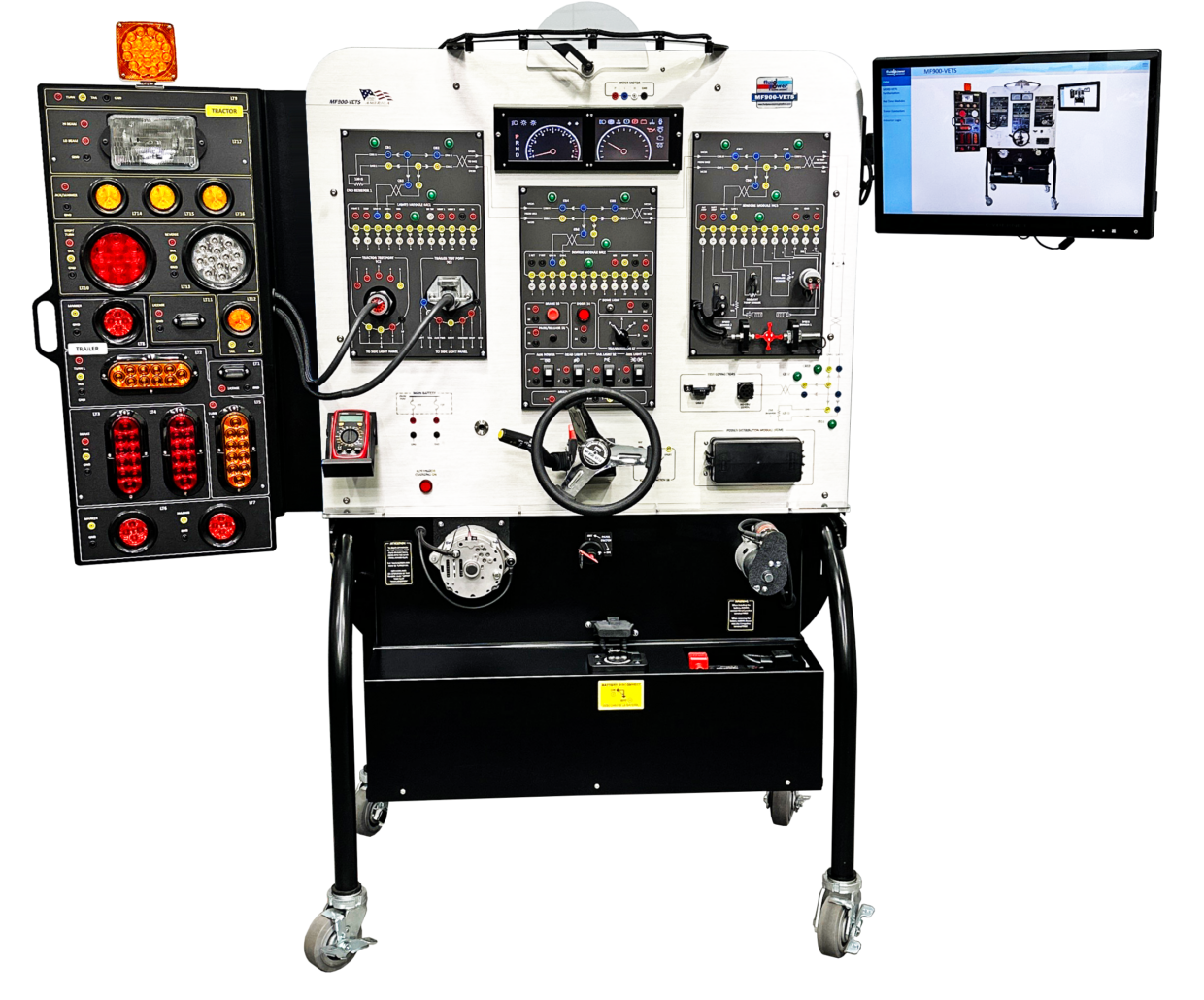

The MF900-VETS Vehicle Electrical Training System is a fully integrated automotive electrical simulator designed to help instructors bridge the gap between mechanical skillsets and modern electronic systems. Featuring a complete starting system, charging system, lighting circuits, multiplexed communication, automotive sensors, and three electronics modules, the MF900-VETS allows students to learn, test, and troubleshoot real automotive electronics in a safe, structured classroom environment.
With built-in fault generation, J1939 & OBD-II communication capabilities, banana-plug test points, LED and incandescent lighting panels, onboard sensors, and interactive touchscreen software, this system gives learners the exact knowledge needed to understand today’s complex automotive electrical networks. The MF900-VETS is ideal for high schools, CTE programs, technical colleges, and workforce development centers seeking to graduate confident, job-ready automotive technicians.
MF900-VETS — Key Features & Benefits
Built for Modern Automotive Electrical Education
Teaches fundamentals of electrical circuits, automotive systems, starting/charging systems, multiplexing (J1939 + OBD-II), DTCs, sensor outputs, LED vs. incandescent lighting, and more.
Interactive Fault Generation for Real-World Diagnostics
Instructors can create electrical faults manually or via the onboard touchscreen computer, allowing students to diagnose true-to-life failures on a complete automotive network.
Learn Multiplexing & CAN-BUS Communication
Students understand how modules communicate, how messages travel across a network, and how failures occur in J1939/OBD-II systems, including viewing messages in real time.
Full Starting & Charging System Simulation
Includes starter motor, alternator charging system, battery current sensors, cold/hot start modes, and testing of battery, crank, and load current.
Automotive Sensors Built Into the Panel
TPS, coolant temperature, oil pressure, hall-effect speed sensors, magnetic sensors, and more are mounted and ready for testing and signal analysis.
Banana-Plug Test Points Throughout the System
Students gain safe, repeatable access to circuits for voltage, resistance, current, and signal testing, reinforcing best diagnostic practices.
Teaches Students to Avoid Unnecessary Module Replacement
Learners build real troubleshooting skills, not “parts changing” habits, saving employers time and cost.
Colleges Benefit From Industry-Aligned, Safe Training Tools
Attract students, reduce accidents, and deliver job-ready graduates while using systems purpose-built for safety and instructional clarity.
MF900-VETS — Specifications
Training Capabilities
- Fundamentals of electrical/electronic circuits
- Automotive lighting systems (LED & incandescent)
- Starter system (cold & hot start)
- Alternator charging system
- Multiplexing & CAN-BUS systems (J1939, OBD-II)
- Sensor reading & interpretation (TPS, coolant, oil pressure, speed)
- DTC generation and interpretation
- Troubleshooting with real failure modes
Hands-On Activities
- Starter system diagnosis (cold/hot start)
- Alternator load & battery current testing
- Identification of modules and signal paths
- Operation of Lights, Sensor, and Switch modules
- Inputs & outputs analysis (digital, analog, pull-up, ladder resistor types)
- Fuse & relay identification (Power Distribution Module)
- Multiplexing communication between modules
- Reading DTCs with J1939 or OBD-II readers
- Troubleshooting electrical faults using software-generated failures
Included System Components
- Full starting system with 12V starter & 12V battery
- Alternator charging system with current sensors
- LED & incandescent lighting panel
- Multi-function steering-wheel switch assembly
- Wiper motor
- Automotive gauge & indicator panel
- Power distribution module (relays & fuses)
- Three (3) electronics modules for multiplexing system
- Magnetic and Hall-effect speed sensors
- Coolant temperature & oil pressure sensors
- TPS sensor
- Electronic connectors with visual indicators
- Banana-plug test points throughout
Software & Diagnostic Tools
- Touchscreen computer with interactive schematics
- Fault generation software
- Real-time J1939 message viewing
- Support for generic J1939 or OBD-II readers
Student Learning Outcomes
Students learn to:
- Troubleshoot automotive electrical systems
- Understand multiplexing & communication failures
- Interpret automotive schematics
- Diagnose voltage drops & poor grounds
- Analyze electronic component input/output behavior
- Use oscilloscopes, protocol analyzers, and advanced diagnostic tools
Construction & Design
- Automotive-style panel layout
- Steel frame with caster mobility
- Color-coded system domains
- Safe, enclosed operation with clear visibility
Electrical Requirements
- 110 VAC, 20-amp dedicated circuit
- 12-gauge, 3-conductor extension cord (50 ft max) if needed
Dimensions & Shipping
- Shipping weight: 920 lbs (417 kg)
- Shipping dimensions: 78″ H × 48″ W × 30″ D
MF900-VETS — Curriculum Overview & Topics Covered
Overview:
The MF900-VETS curriculum prepares learners to diagnose modern automotive electrical systems and multiplexed communication networks through interactive labs and fault-based exercises.
Topics Covered:
- Starting & charging systems
- Lighting circuits (LED & incandescent)
- Sensor diagnostics (pressure, temperature, speed)
- Module communication (CAN-bus / J1939 / OBD-II)
- Signal interpretation & measurement
- Fault isolation in multiplexed systems
- Electrical schematic reading
