Description

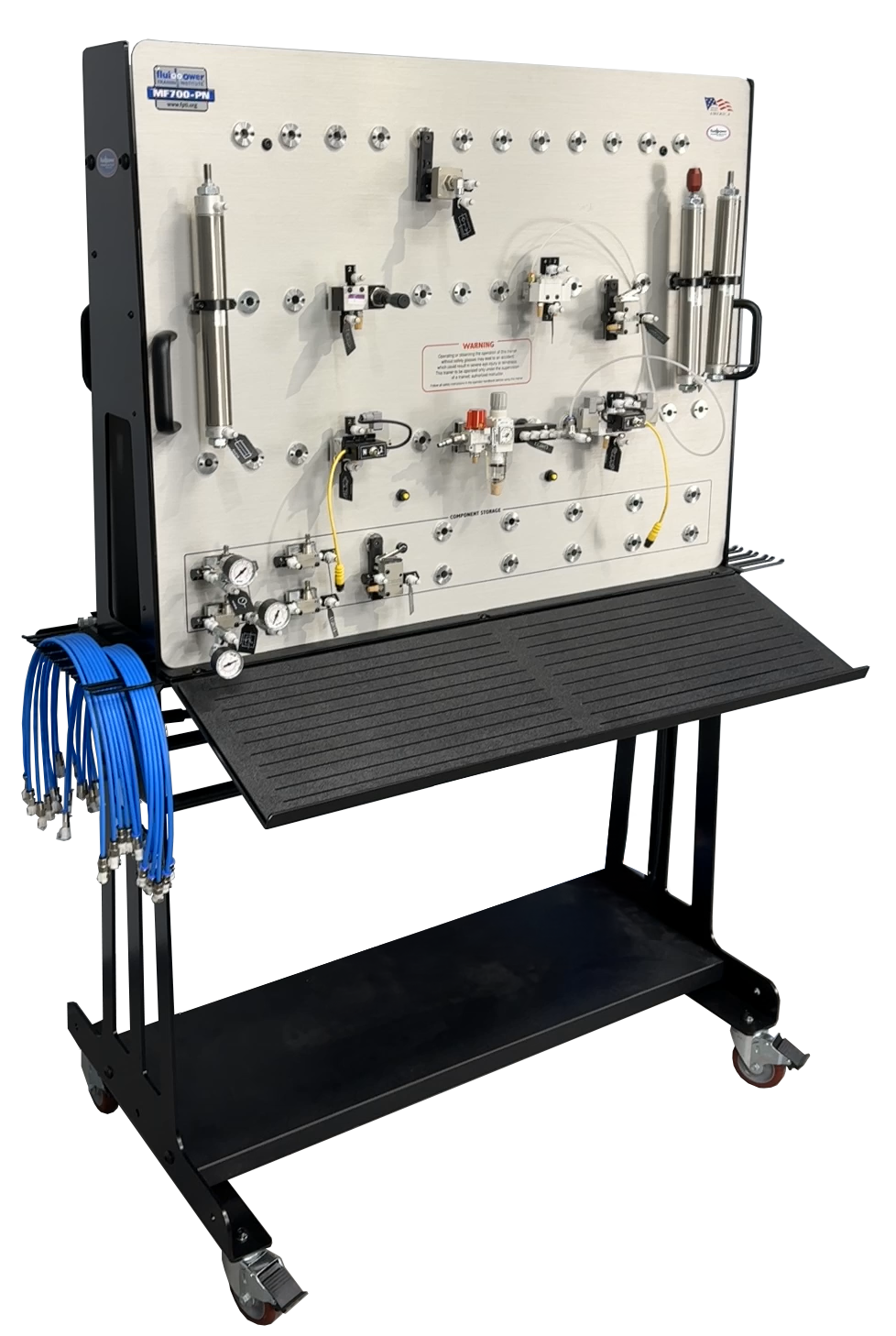

MF700-PN
The MF700-PN Pneumatic Training System gives students the ability to build fully operational pneumatic circuits in real time using industrial components, ISO-symbol alignment, and a unique plug-and-play mounting system. Designed with direct input from educators, it accepts almost any pneumatic component, including your own, and adapts seamlessly from basic pneumatics to advanced electro-pneumatic applications. The trainer’s lightweight steel frame, compact footprint, and integrated storage make it ideal for classrooms, mobile labs, and multi-station training environments.
With onboard safety lockout valves, a lined working surface, organized hose storage, and optional built-in air compressor, the MF700-PN delivers unmatched convenience for instructors and students alike. Hands-on pneumatic learning becomes intuitive: learners simply match ISO symbols to components, mount them instantly, and assemble circuits that bring the theory in their workbooks to life. The result is a clean, safe, and highly effective pneumatic training experience that grows with any program.
MF700-PN — Key Features & Benefits
Accepts Almost Any Pneumatic Component
FPTI’s plug-and-play mounting system allows educators to mount FPTI™ components or their own third-party components using simple adaptors. Components can be mounted vertically or horizontally.
Designed for All Skill Levels
Supports a full range of training, from foundational pneumatics through electro-pneumatic systems, making it suitable for high schools, technical colleges, and skilled-trade programs.
True Industry-Standard Safety
Equipped with real industrial lockout valves so students learn correct, OSHA-compliant safety habits directly on the trainer.
Organization & Classroom Efficiency
Built-in component storage slots, hose racks, a lined work surface, and a spacious front tray keep the workspace clean and clutter-free. Ideal for fast teaching cycles.
Mobile, Lightweight, and Extremely Durable
The rigid, handcrafted frame includes four swivel casters (with locks) for easy movement and stability.
Optional Air Compressor or Use Your Own
Plug into your facility’s air supply or attach an onboard compressor. Integrated filtration, water separation, and regulation ensure clean, dry, safe air.
Complete Curriculum Package Included
Comes with a student workbook, instructor answer key, and Parker’s Pneumatic Technology for Industry manual and full-color PowerPoint presentation.
MF700-PN — Specifications
Frame & Structure
- Compact, lightweight frame with 4 lockable swivel casters
- Rigid steel panel assembly
- Lined work surface for books and manuals
- Integrated component storage along bottom of panel
- Spacious front tray for circuit assembly
Plug-and-Play Component Mounting
- Unique valve locking design for fast on/off installation
- Components labeled with ISO symbols for easy learning
- Supports FPTI™ components and third-party components (with adaptor)
Included Pneumatic Components
- (2) Roller-operated DCVs, 2-position, 3-way
- Hand-lever DCV, 2-position, 3-way, spring return
- Remote-piloted DCV, 2-position, 4-way, air return
- Solenoid-operated DCV, normally closed, 2-position, 3-way
- Double-solenoid DCV, 3-position, 4-way, spring-centered
- (4) One-way flow control valves
- Double-acting cylinder, 10″ stroke, 1.5″ bore
- Single-acting cylinders, 6″ stroke, 1.5″ bore
- Filter/regulator/E-stop with 4-port distribution block
- Quick exhaust valve
- Pressure gauges: 0–150 PSI, 1.5″ display
Hoses & Fittings
- (8) hose assemblies, 30″
- 100′ hose roll
- (20) hose fittings
- (10) tee fittings
- Convenient hose storage on both sides of trainer
Operating Requirements
- Optional onboard air compressor OR connect to facility air supply
- Integrated air filter, water separator, and pressure regulator
- Standard 115V single-phase electrical connection
Course Materials
- Pneumatic Technology for Industry manual (Parker Corporation)
- Full-color PowerPoint presentation
- Student workbook
- Instructor Answer CD
Shipping
- Weight: 405 lbs (184 kg)
- Dimensions: 84″ H × 54″ W × 42″ D
MF700-PN — Curriculum Overview & Topics Covered
The MF700-PN curriculum guides learners through pneumatic principles and hands-on circuit construction using true industrial pneumatic hardware.
Topics Covered:
- Air preparation and regulation
- Pneumatic valve logic
- Cylinder control
- Flow restriction and speed control
- ISO schematic interpretation
- Electro-pneumatic integration fundamentals
- Troubleshooting air system faults
