Description

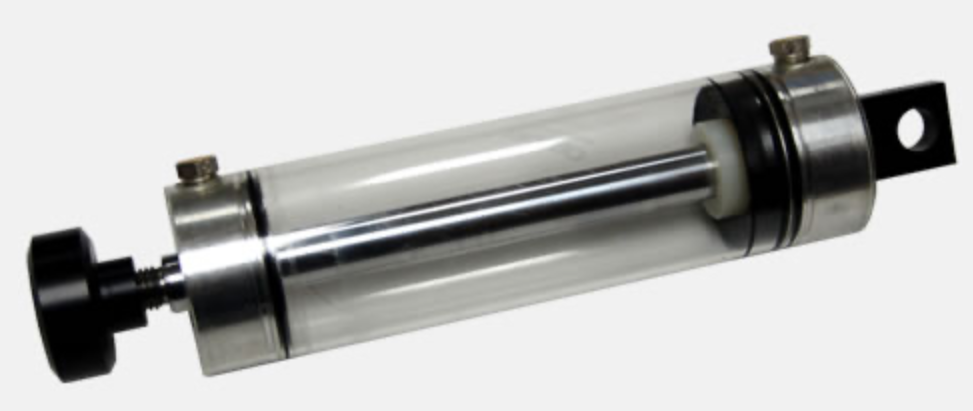

With a clear acrylic cylinder barrel, this model exposes the piston, rod, and sealed chamber areas so students can see how a cylinder creates force and motion. Breathers on the ports allow smooth manual movement, making it easy to demonstrate extension, retraction, and area-based force differences. A perfect introductory cylinder teaching tool.
The transparent design gives learners a direct view of how fluid displacement translates into linear motion, helping reinforce concepts like pressure vs. area and force generation on each side of the piston. As the rod is moved, students can clearly observe how volume changes affect speed and force during extension and retraction. Built for durability and repeated classroom use, this model supports hands-on learning and foundational understanding of hydraulic cylinder operation.
A clear, interactive model that makes the fundamentals of hydraulic cylinder motion and force easy to see and understand.
