MQ HVAC Residential Heat Pump Training Unit

Description

Teach Real-World Residential Heat Pump Diagnostics and Service Skills

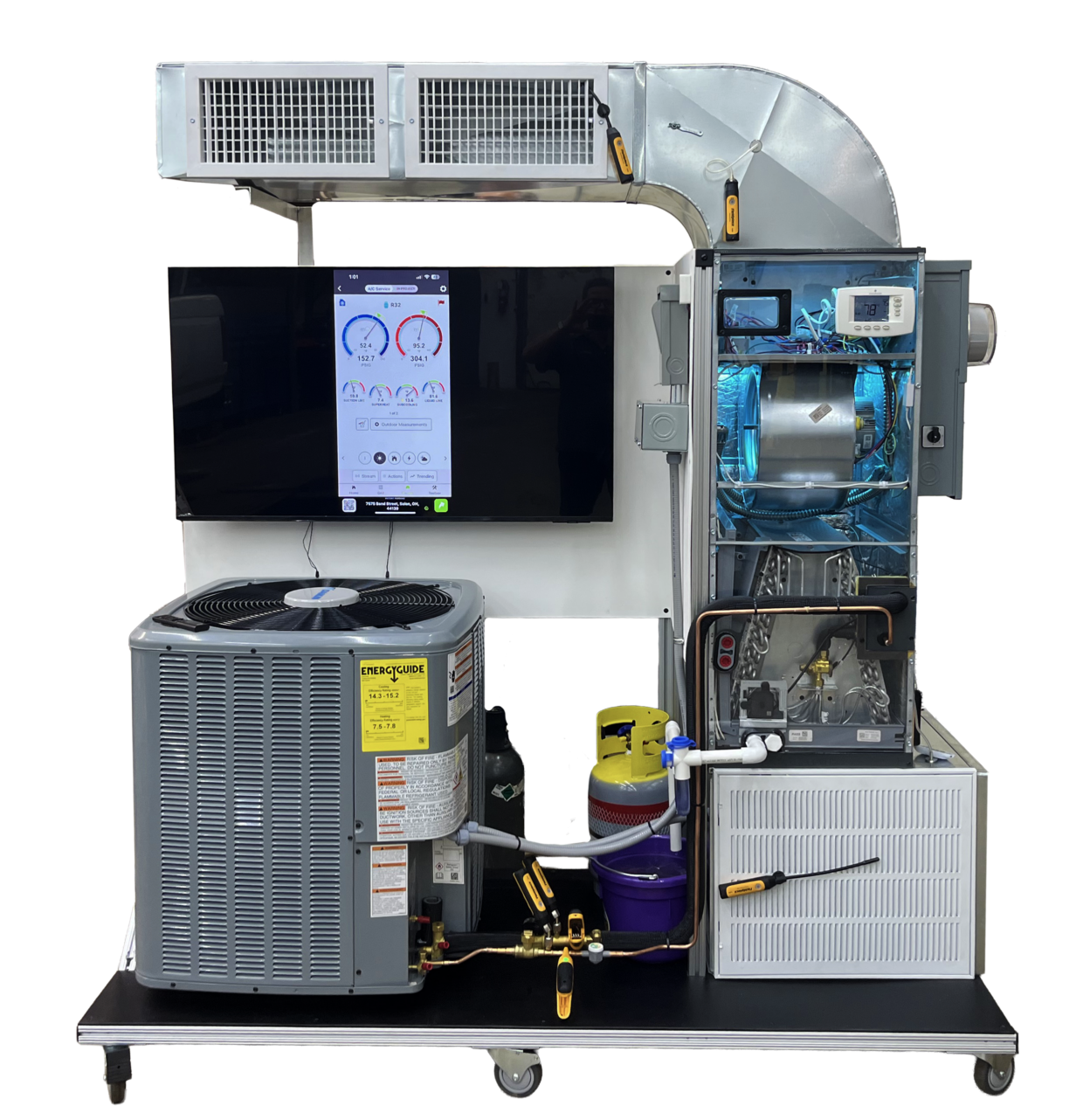

Give students hands-on experience with the systems they will see in the field. The TKMQ_TU42 HVAC Residential Heat Pump Training Unit is built to help instructors teach residential heat pump operation, electrical troubleshooting, airflow diagnostics, refrigeration fundamentals, and fault-based service procedures in a safe, repeatable lab environment.

Designed for HVAC training programs, technical colleges, workforce development centers, and apprenticeship labs, this unit makes abstract concepts visible. Students can follow the refrigeration cycle, observe key components, take live system readings, and practice diagnosing common performance and control issues just like they would on an installed residential system.

Why Schools and Training Centers Choose the MQ Heat Pump Trainer

The reference unit is marketed around real-world troubleshooting of wiring, piping, controls, refrigeration-cycle visibility, live readings, and fault simulation, with lesson ideas covering airflow changes, fan operation, electrical faults, filter restrictions, and psychrometric measurement.

The TKMQ_TU42 HVAC Residential Heat Pump Training Unit brings those same high-value learning outcomes into one instructional platform by helping students:

• Understand the complete residential heat pump cycle

• Practice electrical and mechanical troubleshooting

• Measure pressure, temperature, and airflow changes in real time

• See how faults affect system performance

• Learn the relationship between airflow, heat transfer, superheat, and subcooling

• Build confidence before working on live customer equipment

Key Features

Hands-On Residential Heat Pump Operation

Students train on a working residential-style heat pump system that demonstrates the interaction between indoor and outdoor sections, controls, airflow, and refrigerant movement.

Built-In Fault Simulation

Create realistic troubleshooting exercises with instructor-controlled fault scenarios so students can diagnose electrical, airflow, and refrigeration-related problems in a structured lab setting. Fault simulation is a core feature of the reference unit.

Visible Components for Better Learning

Open-access layout and clearly arranged components help students identify and trace wiring, piping, controls, and major refrigeration components during instruction and lab work. Visible wiring and piping are highlighted on the reference page.

Live Readings and System Measurements

Students can take pressure, temperature, and electrical readings while the unit is operating, reinforcing diagnostic workflows used in the field. The reference product specifically supports pressure, temperature, and electrical measurements and includes gauge access.

Refrigeration Cycle Visualization

Help learners understand the heat pump cycle by showing refrigerant state changes and system response during normal operation and under fault conditions. The reference product emphasizes direct observation of the refrigeration heat pump cycle and fluid stage.

Thermostat and Reversing Valve Training

Students can observe heating/cooling mode changes and learn the role of thermostat signals and reversing valve operation in residential heat pump performance.

Airflow and Heat Transfer Demonstration

The lesson content tied to the reference unit focuses heavily on condenser fan operation, indoor airflow, static effects, filter restriction, wet bulb/dry bulb measurement, and heat transfer behavior.
The MQ unit is positioned to help instructors teach those concepts visually and interactively.

With the TKMQ_TU42 HVAC Residential Heat Pump Training Unit, instructors can teach labs and demonstrations such as:

• Identifying residential heat pump components

• Explaining the refrigeration cycle and heat transfer

• Measuring voltage, amperage, temperature, and pressure

• Diagnosing airflow-related performance changes

• Demonstrating the effects of dirty or restrictive filters

• Showing how condenser fan and indoor blower changes affect operation

• Teaching superheat and subcooling concepts

• Practicing systematic fault isolation

• Understanding thermostat, transformer, and control-circuit behavior

• Comparing normal versus abnormal system performance

These learning themes are directly supported by the lesson ideas surfaced from the reference video and companion articles.
