Description

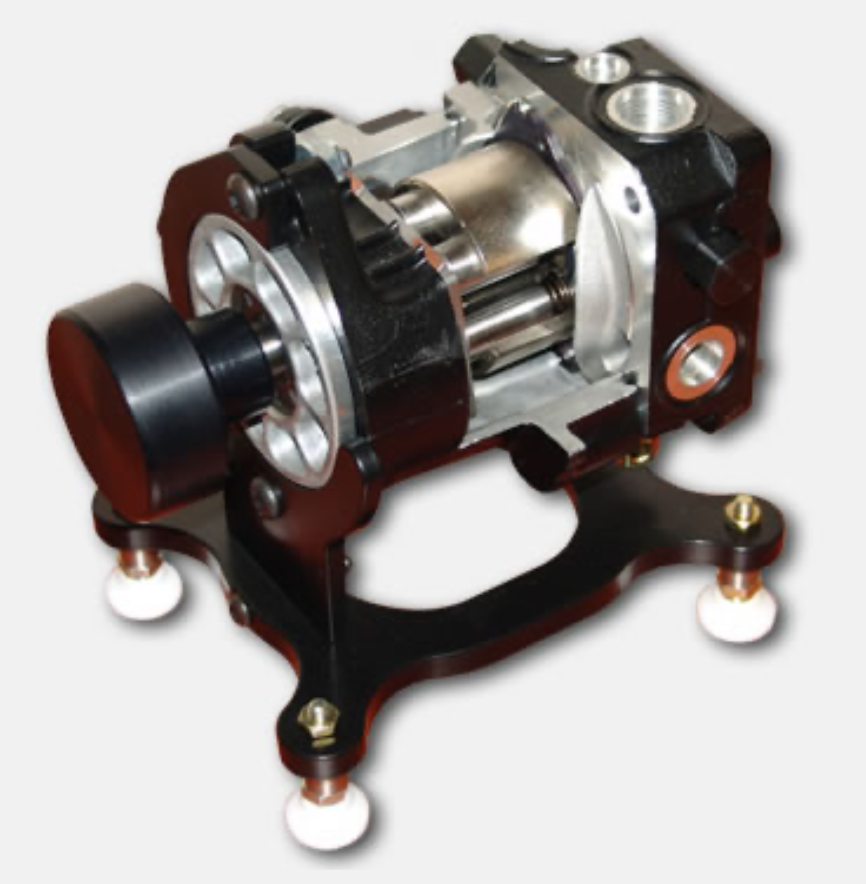

This cutaway gives learners a complete internal view of an over-center axial piston pump, including the swashplate, pistons, pressure relief valve, and charge pump assembly. With multiple strategic cutaways and a manual rotation knob, students can visualize displacement changes and internal oil paths as the pump cycles. Ideal for teaching pump control, pressure compensation, and charge circuit operation.
The manual rotation feature allows users to physically cycle the pump, making it easier to see how piston movement, swashplate angle, and fluid flow interact in real time. Clear cutaway sections highlight key components and flow paths, helping students connect theoretical concepts to actual mechanical operation. Mounted on a stable base for durability and repeated classroom use, this unit supports hands-on demonstrations and deeper understanding of variable displacement pump behavior.
A dynamic training tool that brings axial piston pump operation into clear, hands-on focus.
