Description
Why Choose the MF102-H?
- Comprehensive Learning: Cover foundational hydraulics skills, safety practices, and advanced concepts, including Pascal’s Law, pressure control, and flow dynamics. The system’s structured activities ensure maximum student retention with clear, defined outcomes.
- Unmatched Flexibility: Teach fixed displacement, pressure-compensated, and load-sensing systems seamlessly. Optional Flex-Plate modules expand training capabilities, allowing integration of additional components or custom configurations.
- Turnkey Training Solution: Includes expertly developed materials such as textbooks, workbooks, PowerPoint presentations, and interactive resources, created by hydraulics industry legend Rory S. McLaren.
- Industrial-Grade Design: Built with all industrial components, this system is designed and manufactured in the USA to ensure durability and long-term reliability.
- Safe and Space-Saving: Features zero-leak, quick-connect valves and a compact design that fits through standard doorways, making it ideal for any classroom or training space.
Available Configurations:
Choose between Single-Sided or Double-Sided models to best suit your classroom’s needs.
Whether you’re building foundational hydraulics knowledge or diving into advanced applications, the MF102-H stands out as the most versatile, robust, and effective training solution available.
Discover the MF102-H and elevate your training programs with Toolkit Technologies

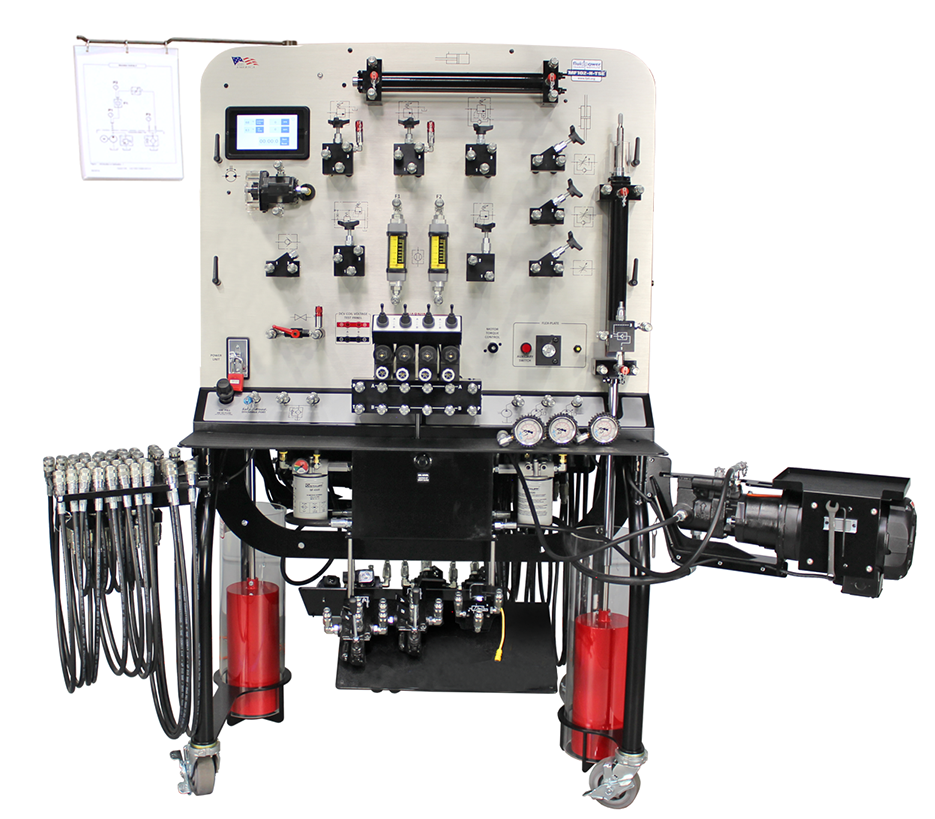

The FPTI MF102-H is the best hydraulics training system for teaching foundational skills surrounding hydraulics, fluid power, fluid power safety, and more.
No longer will students be confused or intimidated with Pascal’s Law, inertia, power, resistance, pressure differential, series, parallel, and more – step-by-step and skill-by-skill we’re going to train students to master these technologies, concepts, skills and theories. With TOOLKIT and FPTI learning basic to advanced hydraulic concepts through hands-on training is easy and fun!
Educational Advantages
Allows students to:
- Operate the hydraulic system through complete “load-cycles”
- Replicate a fully functional industrial or mobile hydraulic system, which is capable of operating with or without load
- Operate in fixed displacement, pressure-compensated, and pressure/flow pump environments
Includes:
- Hydraulic components
- Diagnostic instruments
- Fixed displacement pump
- Pressure-compensated pump
- Load pump
- Optional load-sensing and plug-n-play modules
Specifications
- Pump – Axial piston-type, variable volume, pressure-compensated; 3.78 Lpm (1.0 GPM); 69 bar (1000 PSI); adjustable pressure compensator; adjustable flow
- Electric motor – Single-phase; 115V; TEFC; 1750 RPM; C-face; thermal overload protection
- Electric motor on/off switch – Lockout/tagout mechanism; thermal overload protection with manual reset
- Hydraulic reservoir – capacity 17 liter (4.5 gallon)
- Filtration – 10 micron, spin on/off element w/bypass gauge
- Directional control valves – six (6) total; • One (1) DO3-type; tandem-center; 3-position; 4-way; spring-centered; solenoid-controlled; 24V coils. Also includes sandwich-mounted, knob-adjustable pump port flow control valve • Two (2) DO3-type; closed-center; 3-position; 4-way; spring-centered; solenoid-controlled; 24V coils. Also includes sandwich-mounted, dual, knob-adjustable flow control valves • One (1) DO3-type; float-center; 3-position; 4-way; spring-centered; solenoid-controlled; 24V coils. Also includes sandwich-mounted, knob-adjustable pump port flow control valve • One (1) Monoblock type valve; cylinder spool; 3-position; 4-way; spring-centered; hand-lever operated w/pressure relief valve • One (1) Monoblock type valve; motor spool; 3-position; 4-way; spring-centered; hand-lever operated w/pressure relief valve
- Pilot-operated pressure relief valve w/knob adjustment
- Direct-operated pressure relief valve w/knob adjustment
- Sequence valve w/knob adjustment
- Pressure reducing valve w/knob adjustment
- Counterbalance valve with internal reverse flow check w/knob adjustment
- Needle valve w/knob adjustment
- Flow control valve w/knob adjustment
- Pressure-compensated flow control valve restrictor-type; reverse flow bypass; w/knob adjustment
- Check valve
- Pilot-operated check valve w/manual over ride
- Cylinder – single-rod; double-acting; 36 cm (14”) stroke
- Cylinder – double-rod; double-acting; 36 cm (14”) stroke; w/load engage/disengage mechanism
- Motor – bi-directional; gear-type; w/infinitely variable torque capability
- Flow meters – two (2); 7.56 Lpm (0-2.0 GPM)
- Tachometer – hydraulic motor shaft speed (displayed on the panel-mounted touchscreen)
- Ammeter – (displayed on the panel-mounted touchscreen)
- Dual scale temperature gauge – Oil temperature & ambient temperature (displayed on the panel-mounted touchscreen)
- Stopwatch – (displayed on the panel-mounted touchscreen)
- Pressure gauges – three (3); 103 bar (0-1500 PSI); PSI and bar scales; 6.35 cm (2.5”); glycerine-filled; Bourdon tube type; w/flat-face type quick-connect/disconnect type valves
- Load – 45 Kg (100 lb); Engage/disengage with mechanical latch. Entire weight is contained within a transparent safety enclosure.
- Hose storage caddy – stow-away/swing-out
- Hoses (per side) – • Four (4) – 152 cm (60”) • Eight (8) – 107 cm (42”) • Six (6) – 71 cm (28”) SAE 100-R1; w/flat-face type quick-connect/ disconnect type valves
- T’s – eight (8) (per side) w/flat-face type quick-connect/disconnect type valves
